GSV9009_HDMI4to2_Processor-昂纬科技
HDMI2.1/2.0 Processor Family
  • HDMI2.1 4IN 2OUT Scaler/FRC Processor
  • Support External OSD blending up to 8K60
  • Support Internal OSD generator up to 8K 60Hz
暂无
详细内容

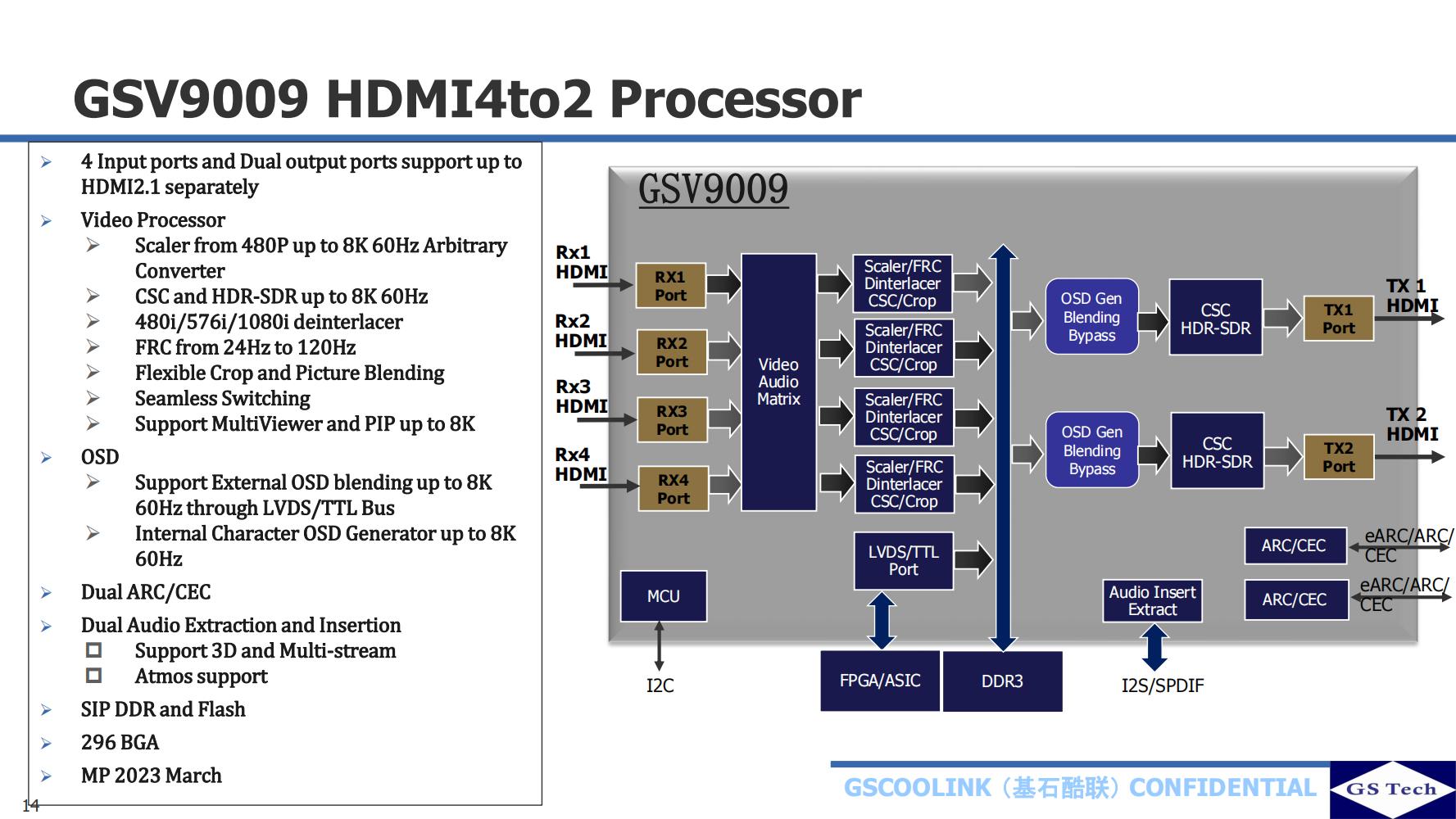

4 Input ports and Dual output ports support up to
HDMI2.1 separately
➢Video Processor
➢Scaler from 480P up to 8K 60Hz Arbitrary
Converter
➢CSC and HDR-SDR up to 8K 60Hz
➢480i/576i/1080i deinterlacer
➢FRC from 24Hz to 120Hz
➢Flexible Crop and Picture Blending
➢Seamless Switching
➢Support MultiViewer and PIP up to 8K
➢OSD
➢Support External OSD blending up to 8K
60Hz through LVDS/TTL Bus
➢Internal Character OSD Generator up to 8K
60Hz
➢Dual ARC/CEC
➢Dual Audio Extraction and Insertion
Support 3D and Multi-stream
Atmos support
➢SIP DDR and Flash
➢296 BGA

➢MP 2023 March
