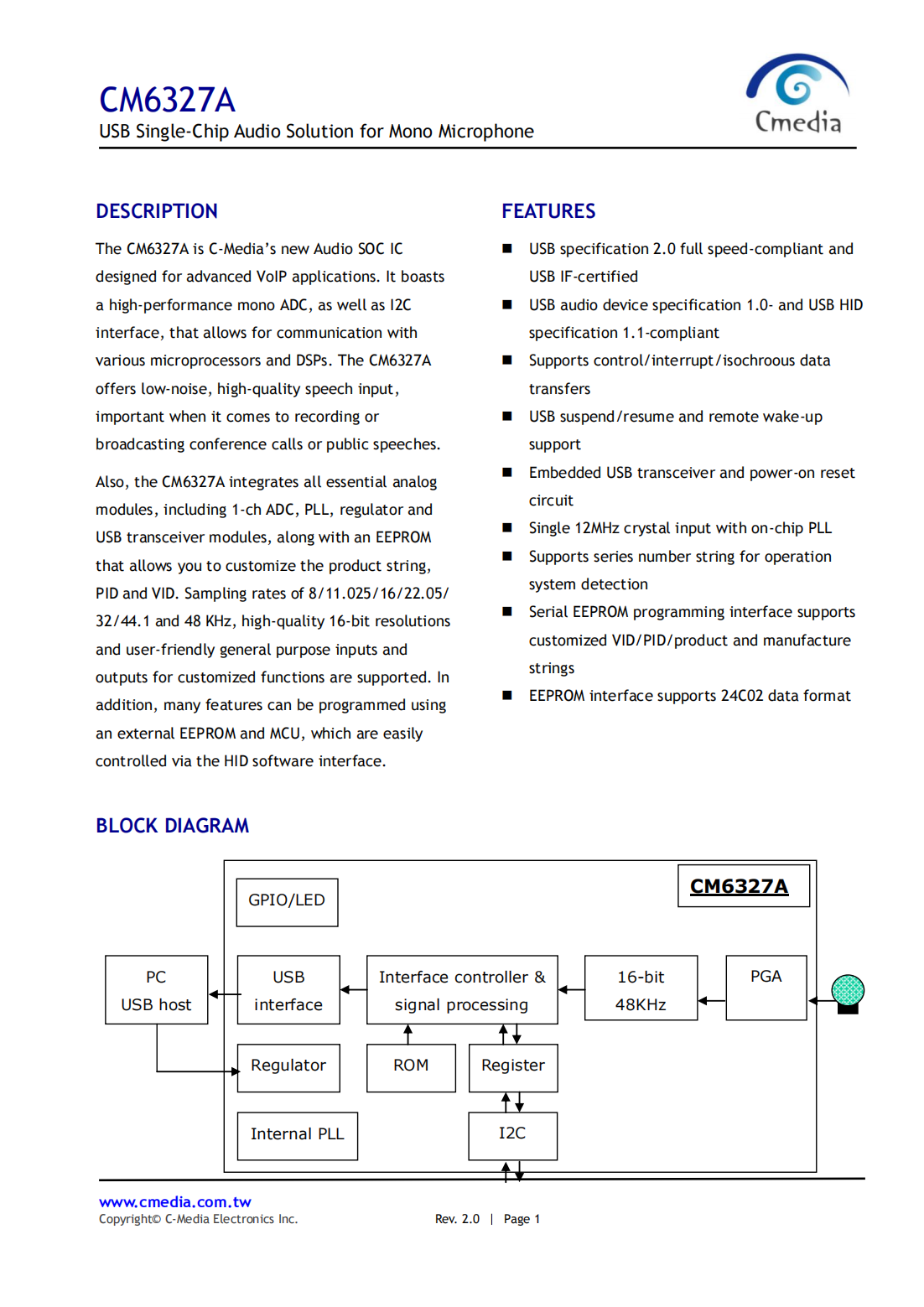

Introduction

CM6327A is a highly integrated single chip USB audio solution which comprises more USB audio controller and applications. According to coming more experiences in PC USB Audio peripheral from Vendors’ recommend, Cmedia aggressively design one single chip to let vendors to come more integration products, and increase more revenues.

CM6327A contains high performance mono ADC, and have verious interface like I2C, allowing all kinds of microprocessor or DSP to communicate. Especially in advanced VOIP applications. CM6327A could give you low noise and high quality speech input solution, thus, when it comes to conference or public speech, it would be wonderful choice for you.

Also, CM6327A integrates all essential analog, 1CH ADC, PLL, regulator, USB transceiver, with external EEPROM to customize your own product string, PID and VID , 8/11/16/22/32/44.1/48KHz sampling rate and high quality 16-bit resolution and friendly general purpose inputs and outputs(GPIO) connect the CM6327A to peripheral hardware, like LED, keypads and buttons, there are many features could be programmable with external EEPROM and MCU. External MCU/EEPROM could be easily controlled via HID software interface. 2 LED indicator pins supported provide more flexible behavior with device on / off / operation / recording mute / and controllable flash time.

Product benefit
Highly integrated single chip USB microphone solution
Electrical Noise Immunity via USB Digital Link
Flexible interface to extent application field
Provide Microsoft Vista premium logo requirement
Flexible descriptor option by external EEPROM
Product features
USB specification 2.0 Full speed compatible and USB IF certification
USB audio device class specification 1.0 and USB HID class specification 1.1 compliant
Support control, interrupt and isochroous data transfers
USB suspend/resume and remote wake-up supported
Embedded USB transceiver and power-on reset circuit
Single 12MHz Crystal Input with On-chip PLL
High-power (500mA) and Low-power (100mA) mode options supported
Support series number string for operation system detect
Serial EEPROM programming interface supports customized VID/PID/Product string/ Manufacture string for device name changed and configuration
EEPROM interface support 24C02 data format
Mono ADC Input
ADC sampling rate 8K / 11.025K / 16K / 22.05K / 32K / 44.1K / 48K Hz, 16-bit resolution
Dynamic Range: 96db, THD+N: -89~96db
Digital Linear Microphone Gain Control function (-16db~45db)
1.0 Vrms input swing biased at 2.25V
Support Microsoft HID functions
Support I2C (Master/Slave) control interface for external controller used
I2C MCU read/write support 16 bytes data transfer bandwidth
I2C interface support extra interrupt pin (INT)
MCU / EEPROM / GPIO control via HID / Vender command interface
USB audio topology has 1 Input Terminals, 1 Output Terminals, 1 Selector Unit, and 1 Feature Unit
Support 2 LED indicator pins:
On / Off / Operation
Recording mute
Support 8 GPIO and 3GPI Pins
Isochronous transfer uses Adaptive Mode with Internal PLL for Synchronization
Embedded Power-On-Reset Block
Single 5V power supply with embedded 5V to 3.3V regulator
Industry standard LQFP-48 Pin package
Compatible with Win2000 / WinXP / Vista / MAC / OSX / Linux
Support Hardware SDK tool for third-party software development
