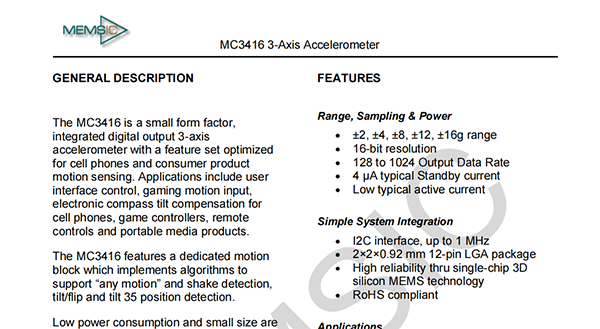

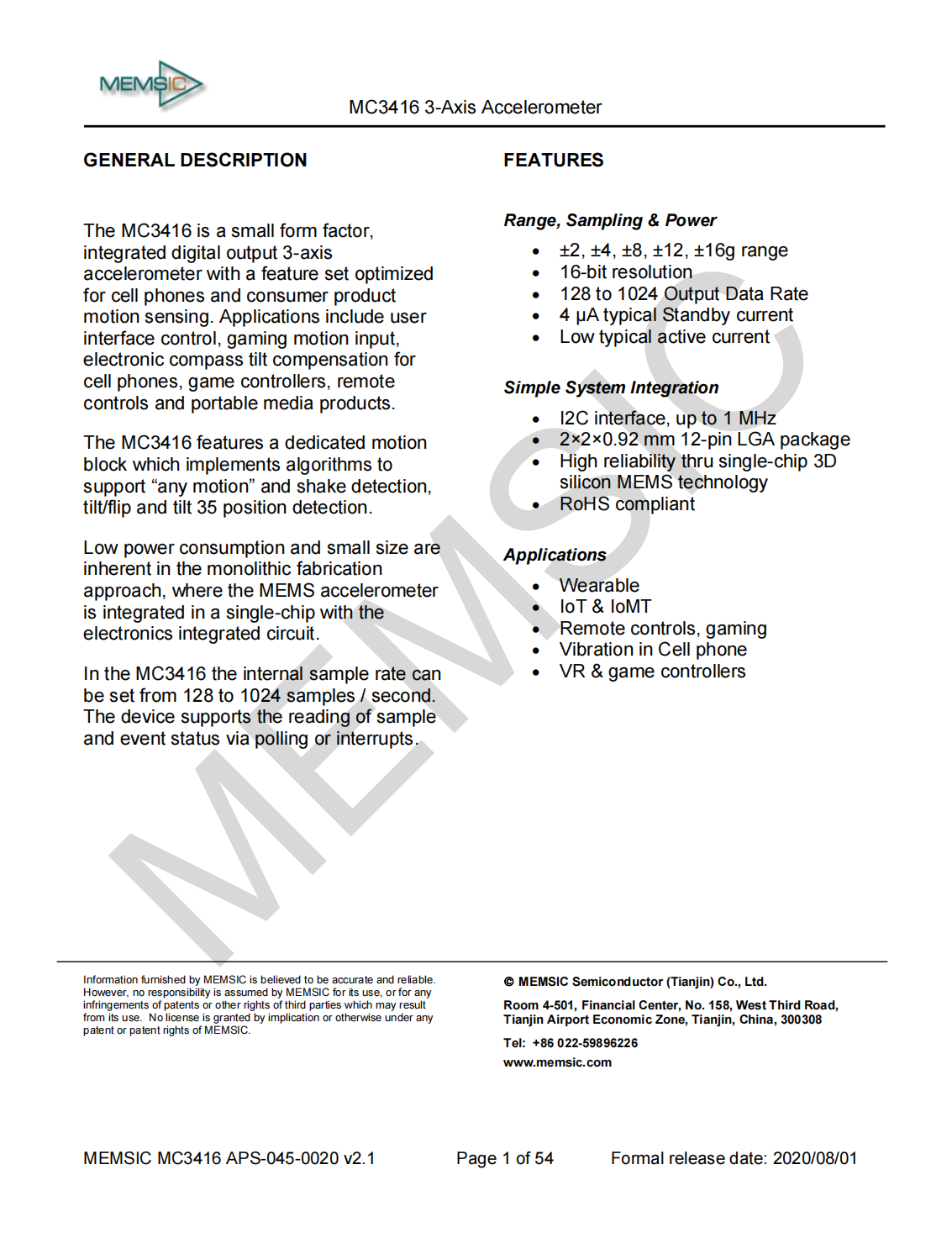

GENERAL DESCRIPTION

The MC3416 is a small form factor,integrated digital output 3-axis accelerometer with a feature set optimized for cell phones and consumer product motion sensing.Applications include user interface control,gaming motion input,electronic compass tilt compensation for cell phones,game controllers,remote controls and portable media products.

The MC3416 features a dedicated motion block which implements algorithms to support“any motion”and shake detection,tilt/flip and tilt 35 position detection.Low power consumption and small size are inherent in the monolithic fabrication approach,where the MEMS accelerometer is integrated in a single-chip with the electronics integrated circuit.

In the MC3416 the internal sample rate can be set from 128 to 1024 samples/second.The device supports the reading of sample and event status via polling or interrupts.

FEATURES

Range,Sampling&Power

•±2,±4,±8,±12,±16g range

•16-bit resolution

•128 to 1024 Output Data Rate

•4μA typical Standby current

•Low typical active current

Simple System Integration

•I2C interface,up to 1 MHz

•2×2×0.92 mm 12-pin LGA package

•High reliability thru single-chip 3D silicon MEMS technology

•RoHS compliant

Applications

•Wearable

•IoT&IoMT

•Remote controls,gaming

•Vibration in Cell phone

•VR&game controllers
