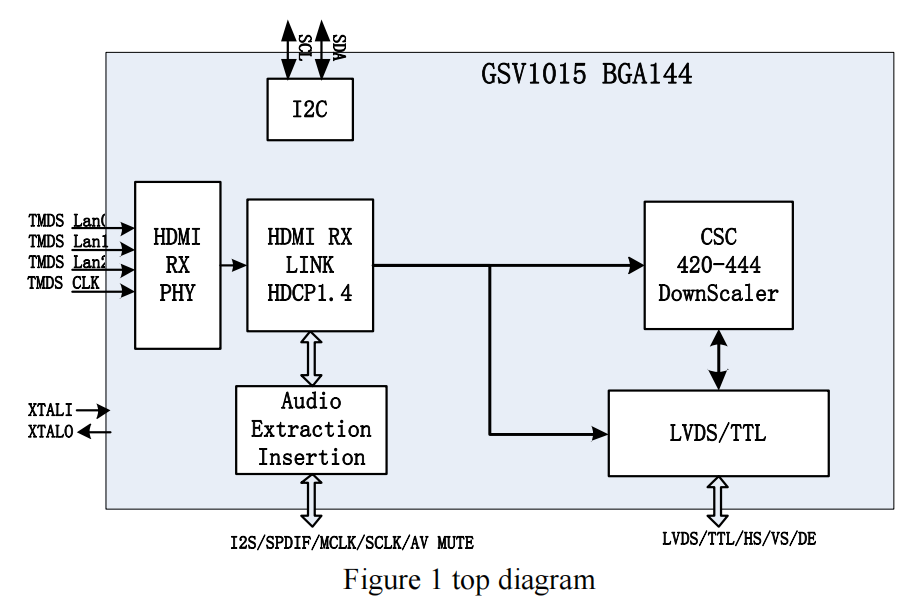

1.1 General Information

The GSV1015 is a HDMI1.4 compatible RX receiver with LVDS/TTL data bus,and supports HDCP 1.4.For audio extraction,GSV1015 can support up to 8-channel I2S/2-channel

S/PDIF/TDM.The HDMI input maximum processing pixel clock frequency is 300MHz which means the video resolution can support up to 4kx2k 30Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 8-channel 192K Hz for non-compression timing.
