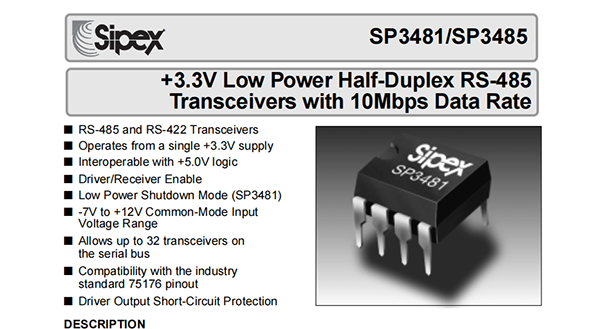

■RS-485 and RS-422 Transceivers

■Operates from a single+3.3V supply

■Interoperable with+5.0V logic

■Driver/Receiver Enable

■Low Power Shutdown Mode(SP3481)

■-7V to+12V Common-Mode Input Voltage Range

■Allows up to 32 transceivers on the serial bus

■Compatibility with the industry standard 75176 pinout

■Driver Output Short-Circuit Protection

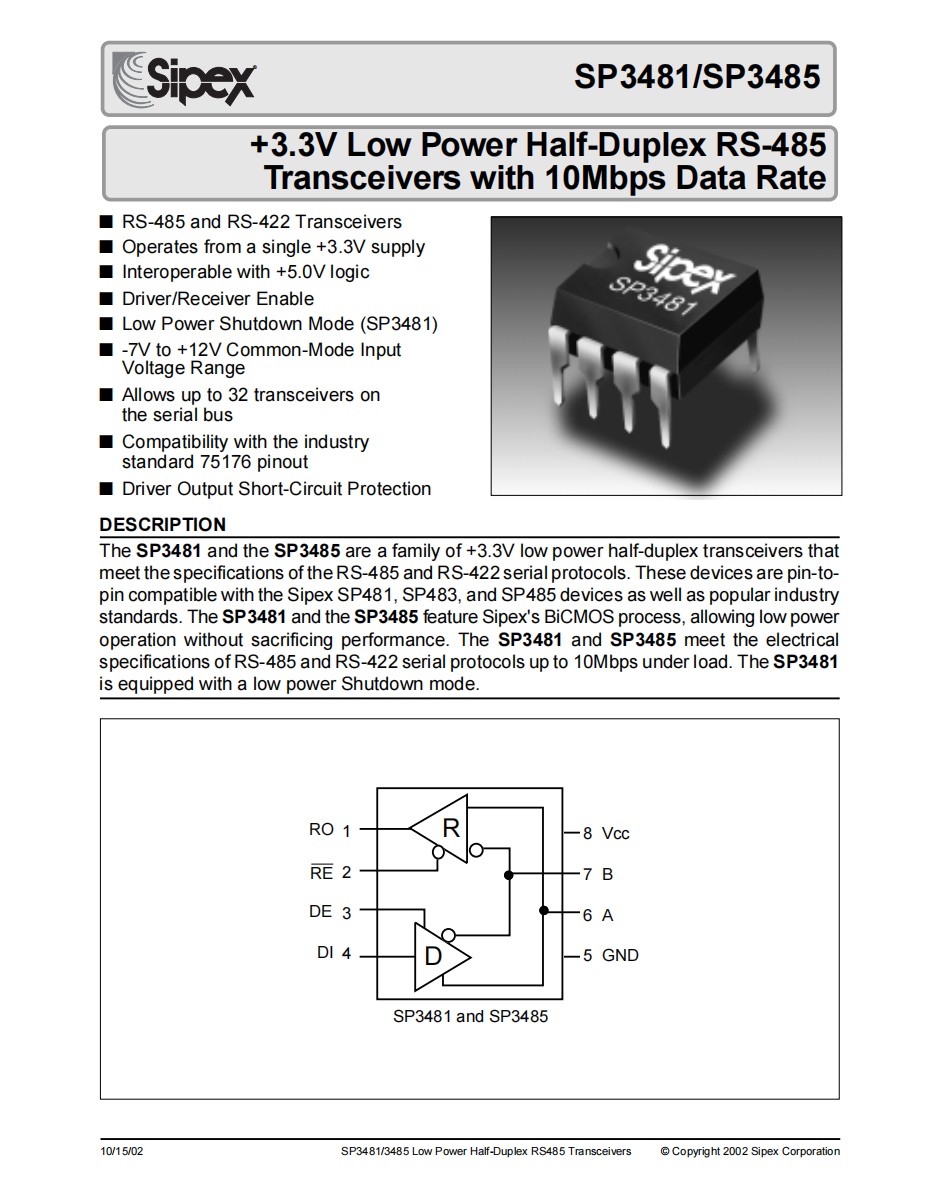

DESCRIPTION

The SP3481 and the SP3485 are a family of+3.3V low power half-duplex transceivers that meet the specifications of the RS-485 and RS-422 serial protocols.These devices are pin-topin compatible with the Sipex SP481,SP483,and SP485 devices as well as popular industry standards.The SP3481 and the SP3485 feature Sipex's BiCMOS process,allowing low power operation without sacrificing performance.The SP3481 and SP3485 meet the electrical specifications of RS-485 and RS-422 serial protocols up to 10Mbps under load.The SP3481 is equipped with a low power Shutdown mode.
