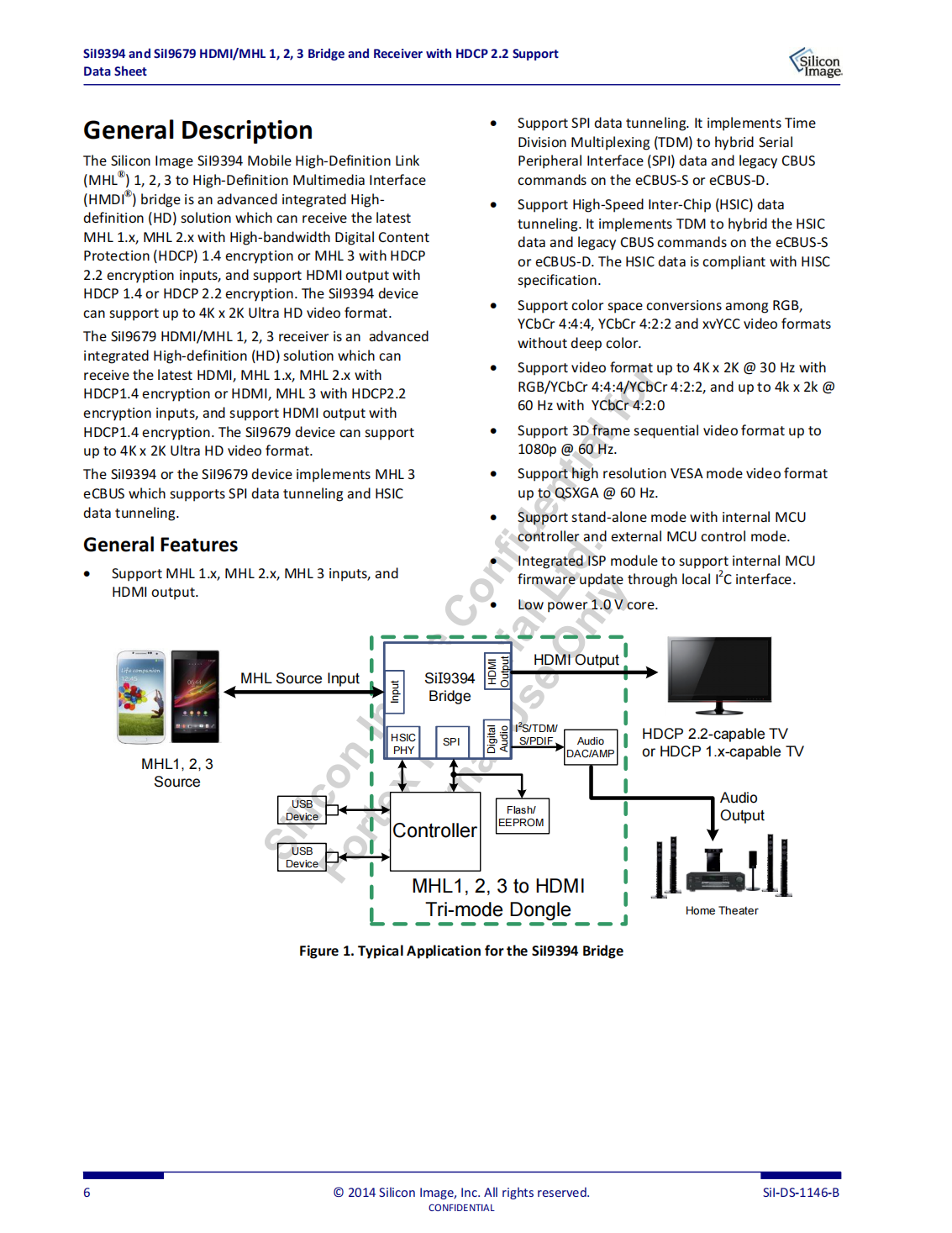

General Description

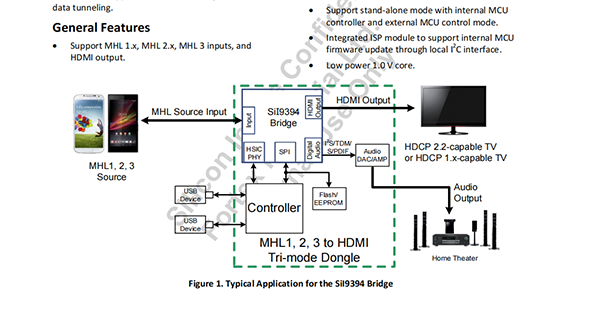

The Silicon Image SiI9394 Mobile High-Definition Link(MHL®)1,2,3 to High-Definition Multimedia Interface(HMDI®)bridge is an advanced integrated Highdefinition(HD)solution which can receive the latest MHL 1.x,MHL 2.x with High-bandwidth Digital Content Protection(HDCP)1.4 encryption or MHL 3 with HDCP2.2 encryption inputs,and support HDMI output with HDCP 1.4 or HDCP 2.2 encryption.The SiI9394 device can support up to 4K x 2K Ultra HD video format.

The SiI9679 HDMI/MHL 1,2,3 receiver is an advanced integrated High-definition(HD)solution which can receive the latest HDMI,MHL 1.x,MHL 2.x with HDCP1.4 encryption or HDMI,MHL 3 with HDCP2.2 encryption inputs,and support HDMI output with HDCP1.4 encryption.The SiI9679 device can supportup to 4K x 2K Ultra HD video format.

The SiI9394 or the SiI9679 device implements MHL 3eCBUS which supports SPI data tunneling and HSIC data tunneling.

General Features

Support MHL 1.x,MHL 2.x,MHL 3 inputs,and HDMI output.

Support SPI data tunneling.It implements Time Division Multiplexing(TDM)to hybrid Serial Peripheral Interface(SPI)data and legacy CBUS commands on the eCBUS-S or eCBUS-D.

Support High-Speed Inter-Chip(HSIC)data tunneling.It implements TDM to hybrid the HSIC data and legacy CBUS commands on the eCBUS-S or eCBUS-D.The HSIC data is compliant with HISC specification.

Support color space conversions among RGB,YCbCr 4:4:4,YCbCr 4:2:2 and xvYCC video formatswithout deep color.

Support video format up to 4K x 2K 30 Hz with RGB/YCbCr 4:4:4/YCbCr 4:2:2,and up to 4k x 2k 60 Hz with YCbCr 4:2:0

Support 3D frame sequential video format up to 1080p 60 Hz.

Support high resolution VESA mode video format up to QSXGA 60 Hz.

Support stand-alone mode with internal MCU controller and external MCU control mode.

Integrated ISP module to support internal MCU firmware update through local I2C interface.

Low power 1.0 V core.
