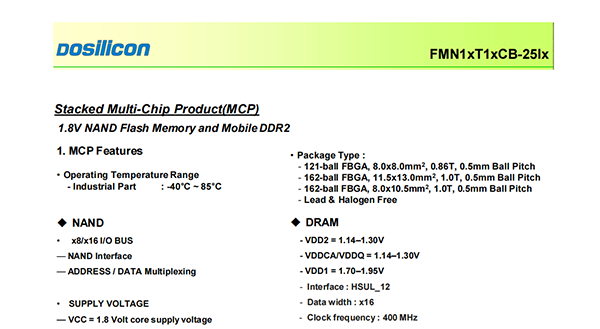

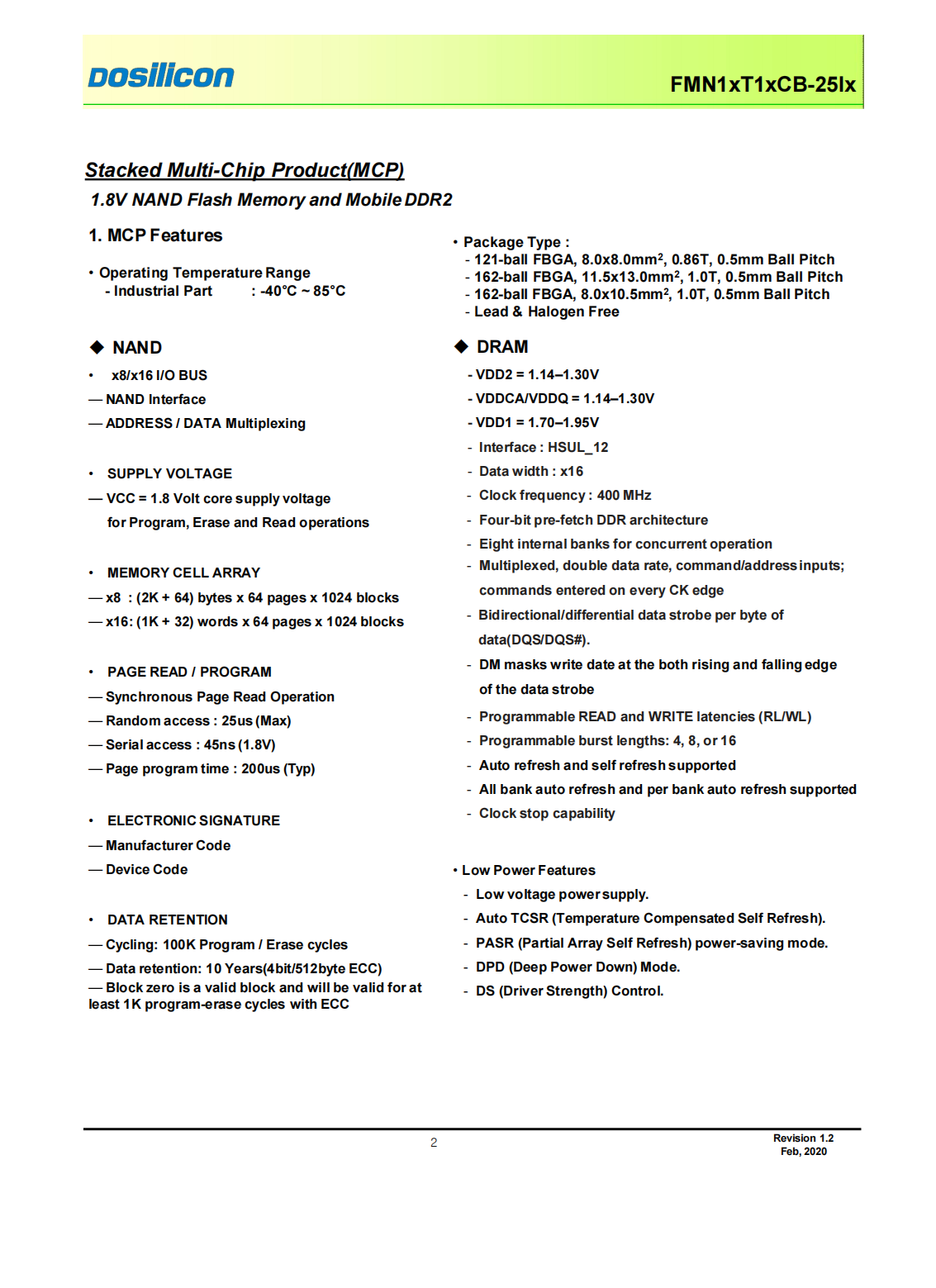

1.MCP Features•Package Type:

-121-ball FBGA,8.0x8.0mm2,0.86T,0.5mm Ball Pitch

-162-ball FBGA,11.5x13.0mm2,1.0T,0.5mm Ball Pitch

-162-ball FBGA,8.0x10.5mm2,1.0T,0.5mm Ball Pitch

-Lead&Halogen Free

•Operating Temperature Range

-Industrial Part:-40°C~85°C

NAND

•x8/x16 I/O BUS

—NAND Interface

—ADDRESS/DATA Multiplexing

•SUPPLY VOLTAGE

—VCC=1.8 Volt core supply voltage for Program,Erase and Read operations

•MEMORY CELL ARRAY

—x8:(2K+64)bytes x 64 pages x 1024 blocks

—x16:(1K+32)words x 64 pages x 1024 blocks

•PAGE READ/PROGRAM

—Synchronous Page Read Operation

—Random access:25us(Max)

—Serial access:45ns(1.8V)

—Page program time:200us(Typ)

•ELECTRONIC SIGNATURE

—Manufacturer Code

—Device Code

•DATA RETENTION

—Cycling:100K Program/Erase cycles

—Data retention:10 Years(4bit/512byte ECC)

—Block zero is a valid block and will be valid for at least 1K program-erase cycles with ECC

DRAM

-VDD2=1.14–1.30V

-VDDCA/VDDQ=1.14–1.30V

-VDD1=1.70–1.95V

-Interface:HSUL_12

-Data width:x16

-Clock frequency:400 MHz

-Four-bit pre-fetch DDR architecture

-Eight internal banks for concurrent operation

-Multiplexed,double data rate,command/addressinputs;commands entered on every CK edge

-Bidirectional/differential data strobe per byte of data(DQS/DQS#).

-DM masks write date at the both rising and falling edge of the data strobe

-Programmable READ and WRITE latencies(RL/WL)

-Programmable burst lengths:4,8,or 16

-Auto refresh and self refresh supported

-All bank auto refresh and per bank auto refresh supported

-Clock stop capability

•Low Power Features

-Low voltage power supply.

-Auto TCSR(Temperature Compensated Self Refresh).

-PASR(Partial Array Self Refresh)power-saving mode.

-DPD(Deep Power Down)Mode.

-DS(Driver Strength)Control.
