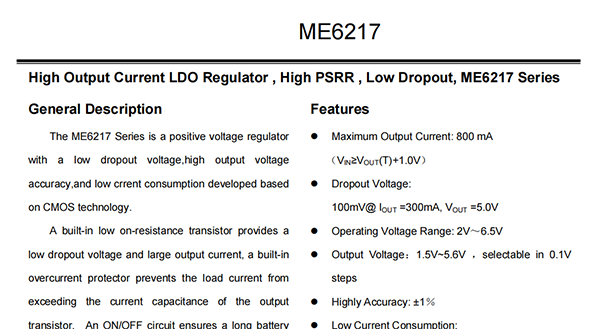

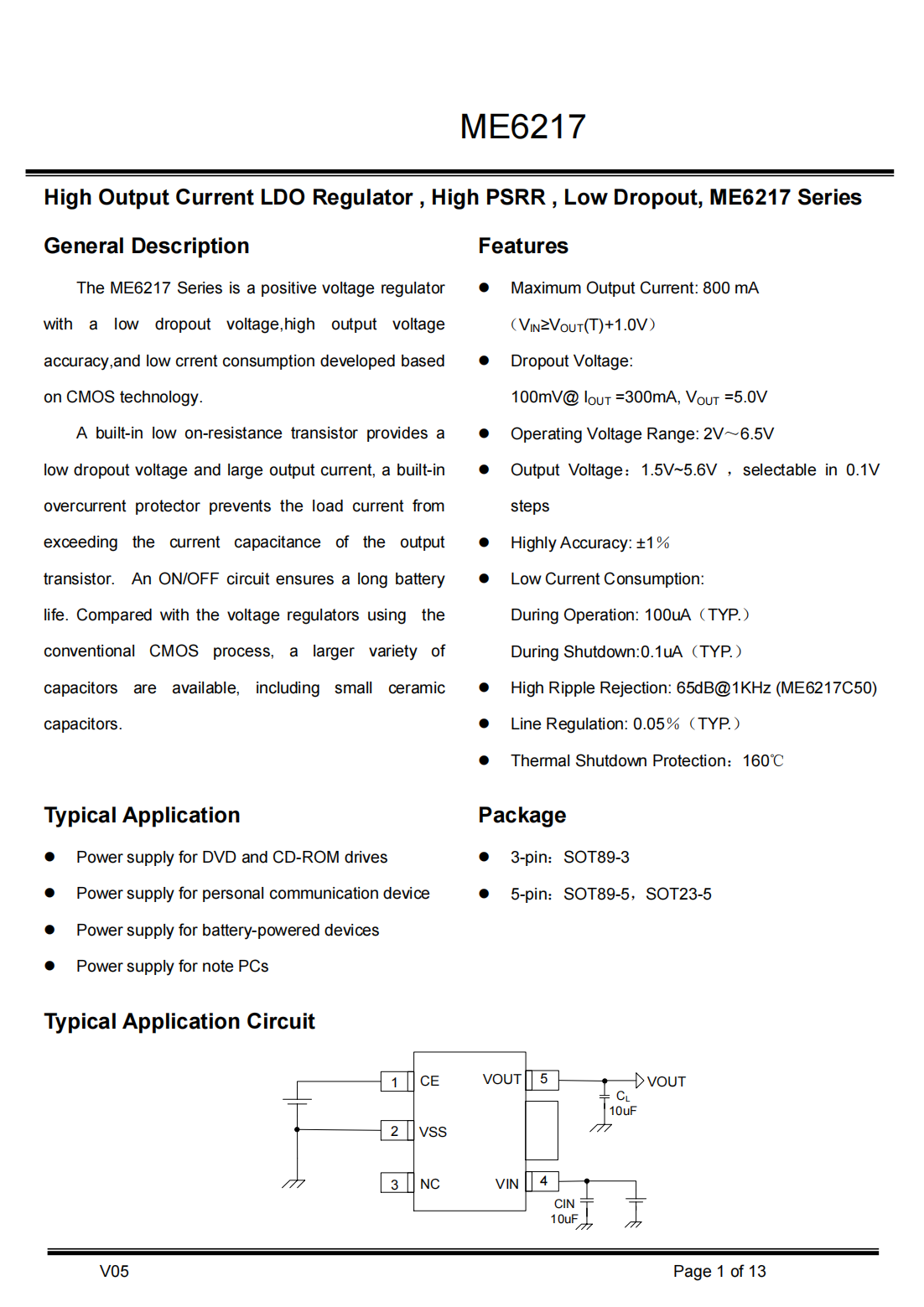

General Description

The ME6217 Series is a positive voltage regulator with a low dropout voltage,high output voltage accuracy,and low crrent consumption developed based on CMOS technology.A built-in low on-resistance transistor provides a low dropout voltage and large output current,a built-in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor.An ON/OFF circuit ensures a long battery life.Compared with the voltage regulators using the conventional CMOS process,a larger variety of capacitors are available,including small ceramic capacitors.

Features

Maximum Output Current:800 mA（VIN≥VOUT(T)+1.0V）

Dropout Voltage:100mV IOUT=300mA,VOUT=5.0V

Operating Voltage Range:2V～6.5V

Output Voltage：1.5V~5.6V，selectable in 0.1V steps

Highly Accuracy:±1％

Low Current Consumption:During Operation:100uA（TYP.）During Shutdown:0.1uA（TYP.）

High Ripple Rejection:65dB 1KHz(ME6217C50)

Line Regulation:0.05％（TYP.）

Thermal Shutdown Protection：160℃
