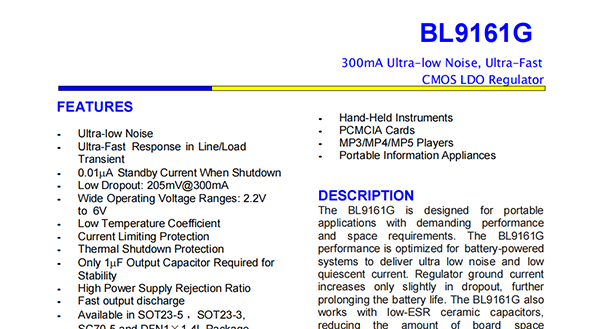

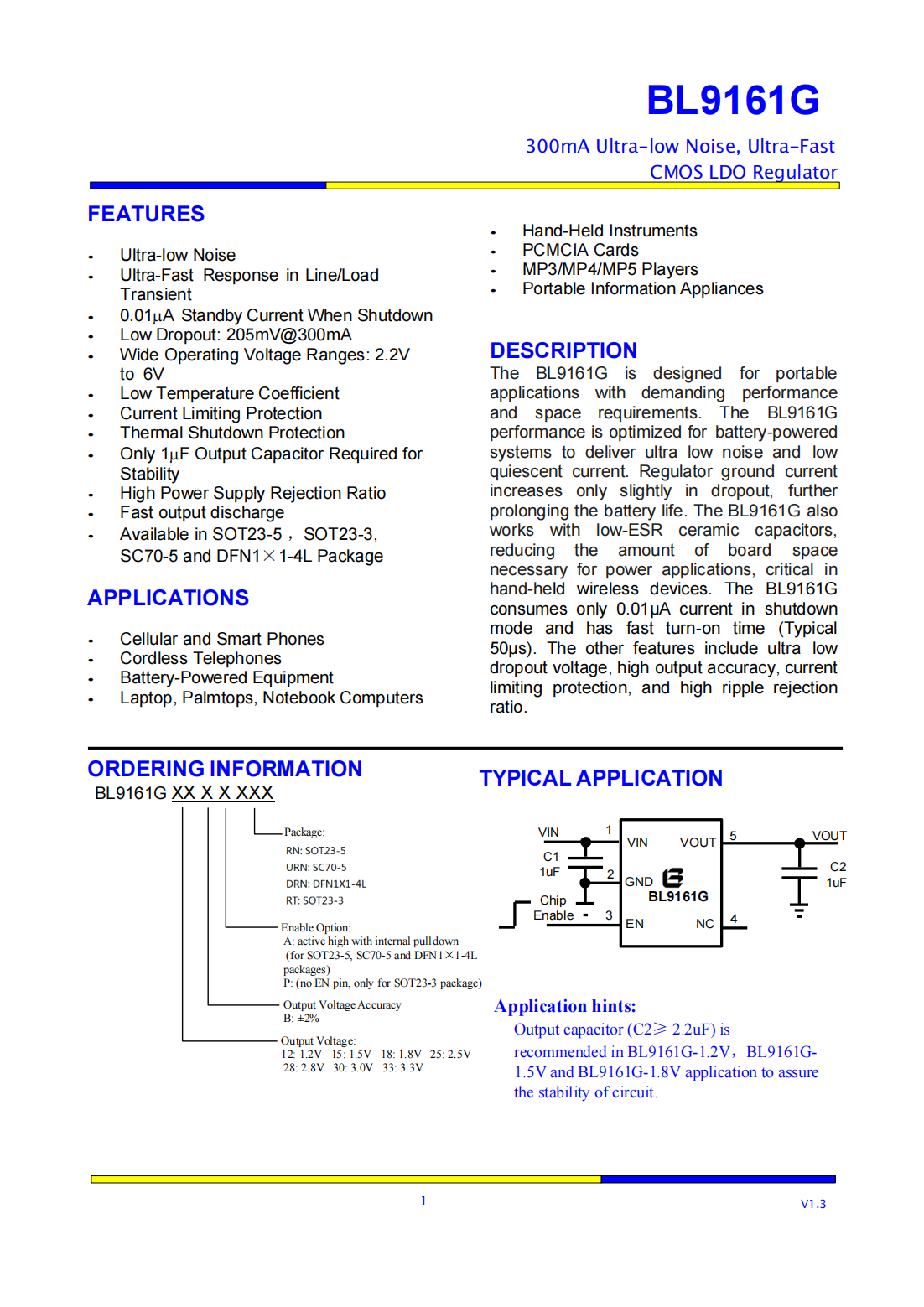

FEATURES

Ultra-low Noise

Ultra-Fast Response in Line/Load Transient

0.01A Standby Current When Shutdown

Low Dropout:205mV 300mA

Wide Operating Voltage Ranges:2.2V to 6V

Low Temperature Coefficient

Current Limiting Protection

Thermal Shutdown Protection

Only 1F Output Capacitor Required for Stability

High Power Supply Rejection Ratio

Fast output discharge

Available in SOT23-5，SOT23-3,SC70-5 and DFN1×1-4L Package

APPLICATIONS

Cellular and Smart Phones

Cordless Telephones

Battery-Powered Equipment

Laptop,Palmtops,Notebook Computers ORDERING INFORMATION BL9161G XX X X XXX

Hand-Held Instruments

PCMCIA Cards

MP3/MP4/MP5 Players

Portable Information Appliances

DESCRIPTION

The BL9161G is designed for portable applications with demanding performance and space requirements.The BL9161Gperformance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current.Regulator ground current increases only slightly in dropout,further prolonging the battery life.The BL9161G also works with low-ESR ceramic capacitors,reducing the amount of board space necessary for power applications,critical in hand-held wireless devices.

The BL9161Gconsumes only 0.01µA current in shutdown mode and has fast turn-on time(Typical 50µs).The other features include ultra low dropout voltage,high output accuracy,current limiting protection,and high ripple rejection ratio.
