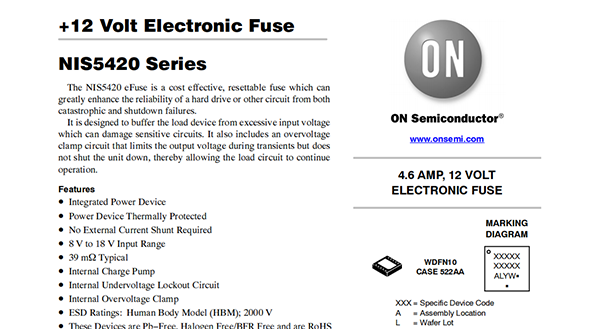

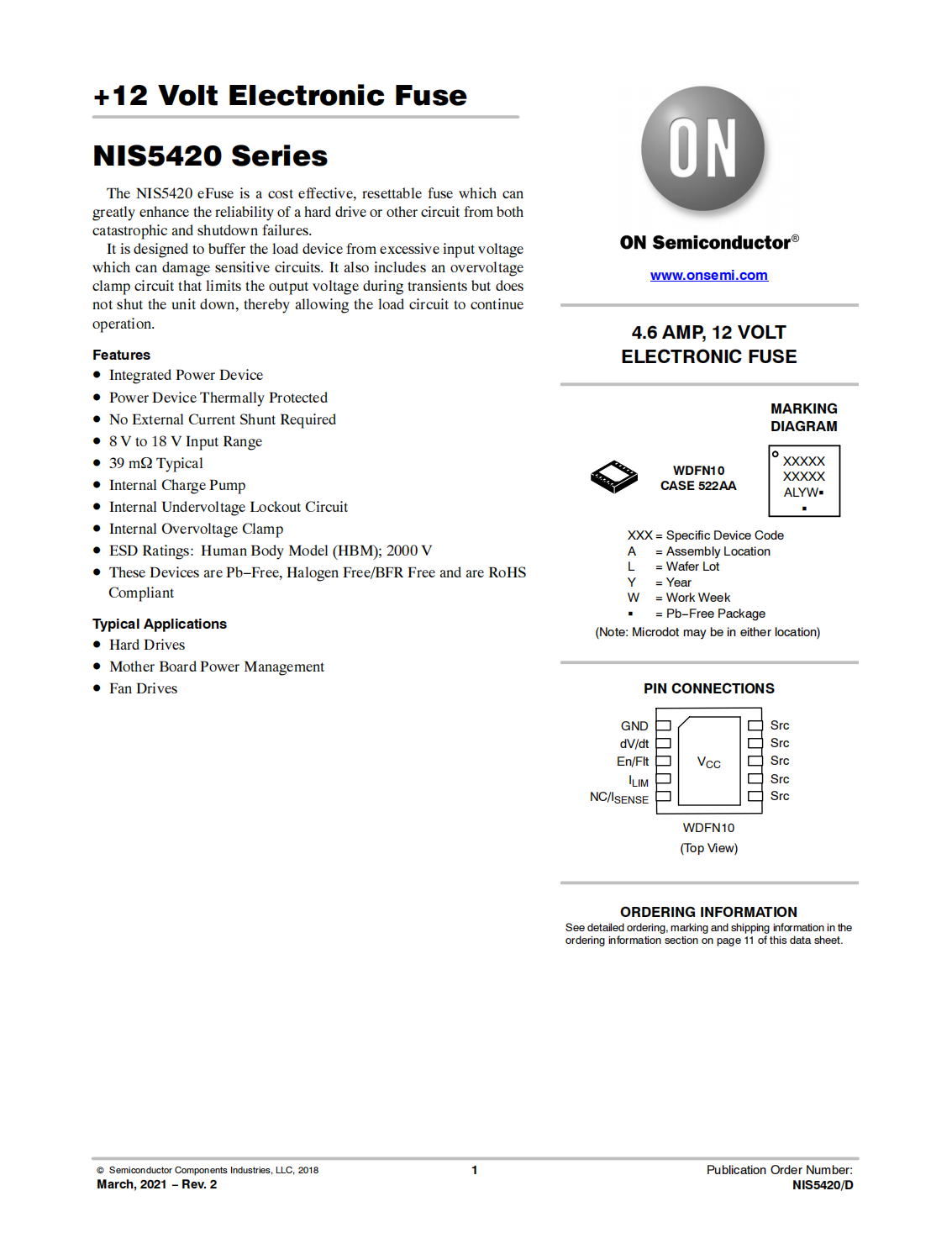

The NIS5420 eFuse is a cost effective,resettable fuse which can greatly enhance the reliability of a hard drive or other circuit from both catastrophic and shutdown failures.It is designed to buffer the load device from excessive input voltage which can damage sensitive circuits.It also includes an overvoltage clamp circuit that limits the output voltage during transients but does not shut the unit down,thereby allowing the load circuit to continue operation.

Features

•Integrated Power Device

•Power Device Thermally Protected

•No External Current Shunt Required

•8 V to 18 V Input Range

•39 mTypical

•Internal Charge Pump

•Internal Undervoltage Lockout Circuit

•Internal Overvoltage Clamp

•ESD Ratings:Human Body Model(HBM);2000 V

•These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant Typical Applications

•Hard Drives

•Mother Board Power Management

•Fan Drives
