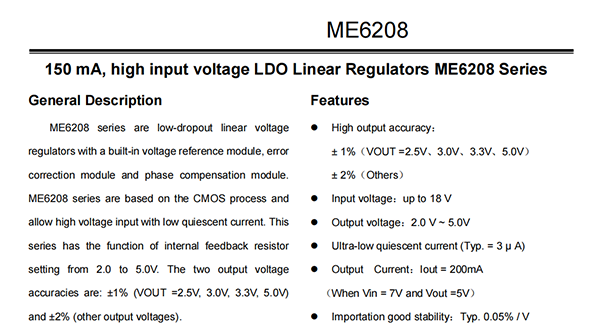

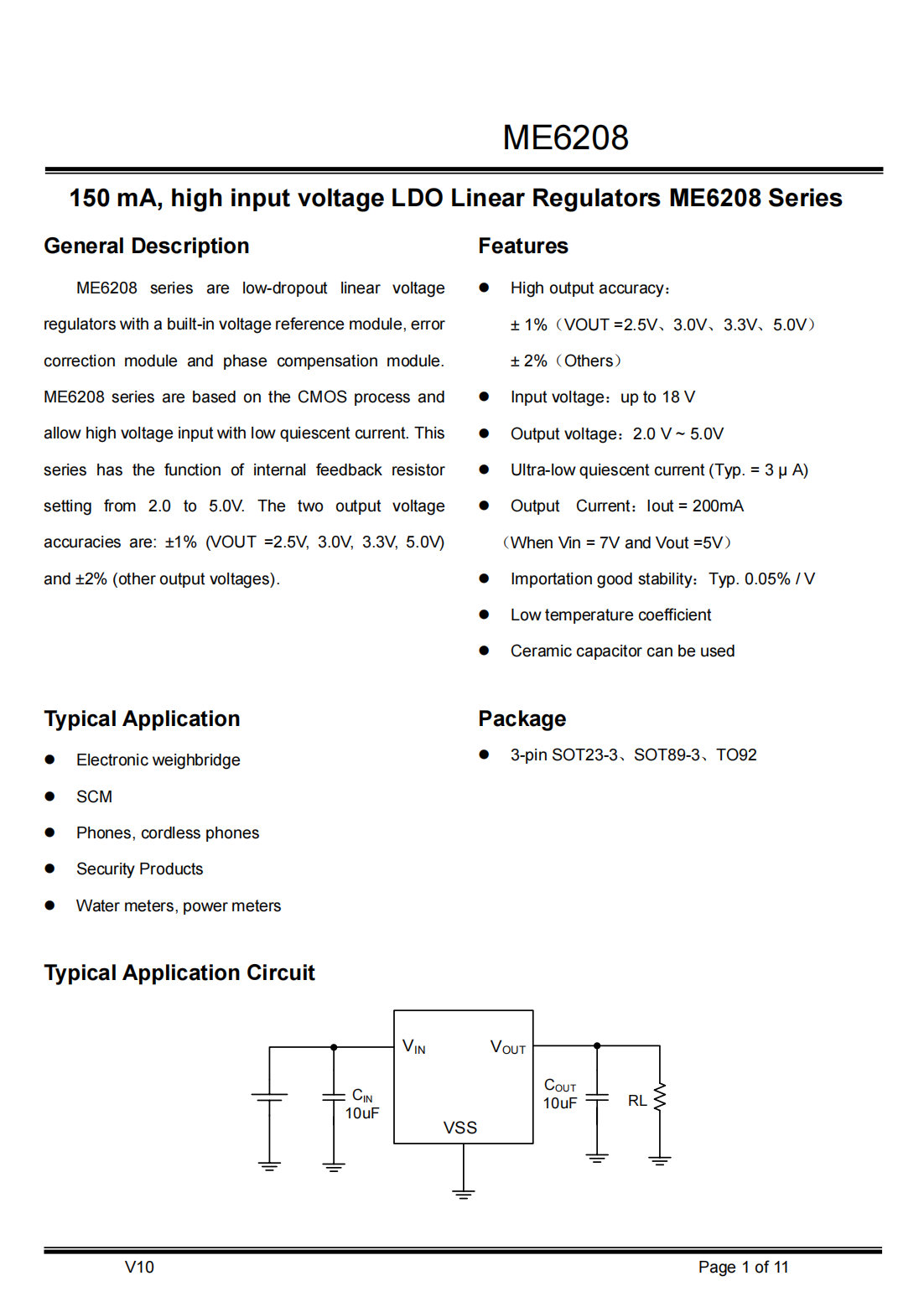

General Description

ME6208 series are low-dropout linear voltage regulators with a built-in voltage reference module,error correction module and phase compensation module.

ME6208 series are based on the CMOS process and allow high voltage input with low quiescent current.Thisseries has the function of internal feedback resistor setting from 2.0 to 5.0V.The two output voltage accuracies are:±1%(VOUT=2.5V,3.0V,3.3V,5.0V)and±2%(other output voltages).

Features

High output accuracy：

±1%（VOUT=2.5V、3.0V、3.3V、5.0V）

±2%（Others）

Input voltage：up to 18 V

Output voltage：2.0 V~5.0V

Ultra-low quiescent current(Typ.=3µA)

Output Current：Iout=200mA

（When Vin=7V and Vout=5V）

Importation good stability：Typ.0.05%/V

Low temperature coefficient

Ceramic capacitor can be used

Typical Application

Electronic weighbridge

SCM

Phones,cordless phones

Security Products

Water meters,power meters
