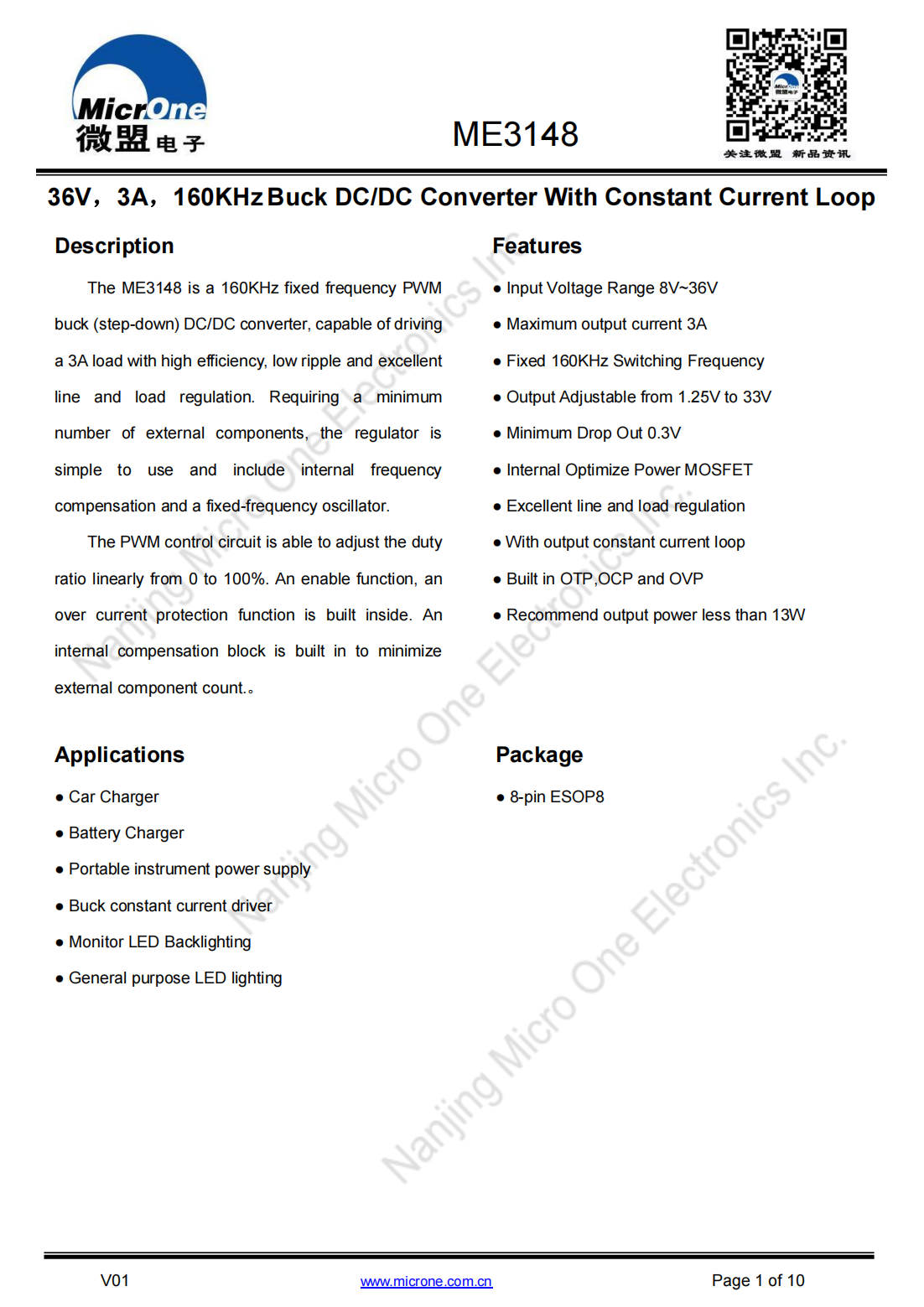

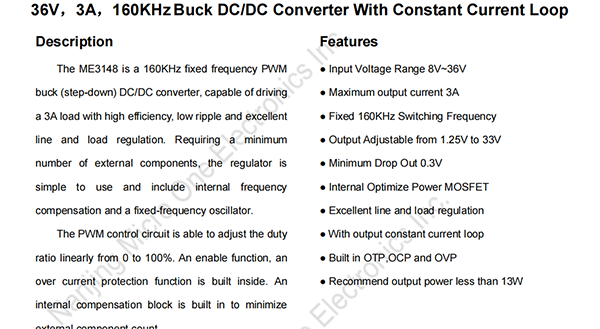

Description

The ME3148 is a 160KHz fixed frequency PWM buck(step-down)DC/DC converter,capable of driving a 3A load with high effciency,ow ripple and excellent line and load regulaton.Requiring a minmum number of external components,the regulator is simple to use and nclude nternal frequency compensation and a fixed-frequency oscillator.

The PWM control crcuit s able to adjust the duty ratio linearly from O to 100%.An enable function an over current protection function is built inside.An intemal compensation block is buit in to minimize extema component count。

Features

●Input Voltage Range 8V~36V

●Maximum output current 3A

●Fixed 160KHz Switching Frequency

●Output Adjustable from 1.25Vto 33V

●Minimum Drop Out 0.3V

●Interna Optimize Power MOSFET

●Excellent line and load regulation

●With output constant current loop

●Buit in OTP,OCP and OVP

●Recommend output power less than 13W
