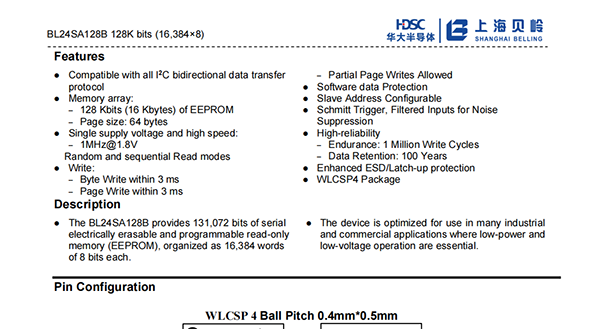

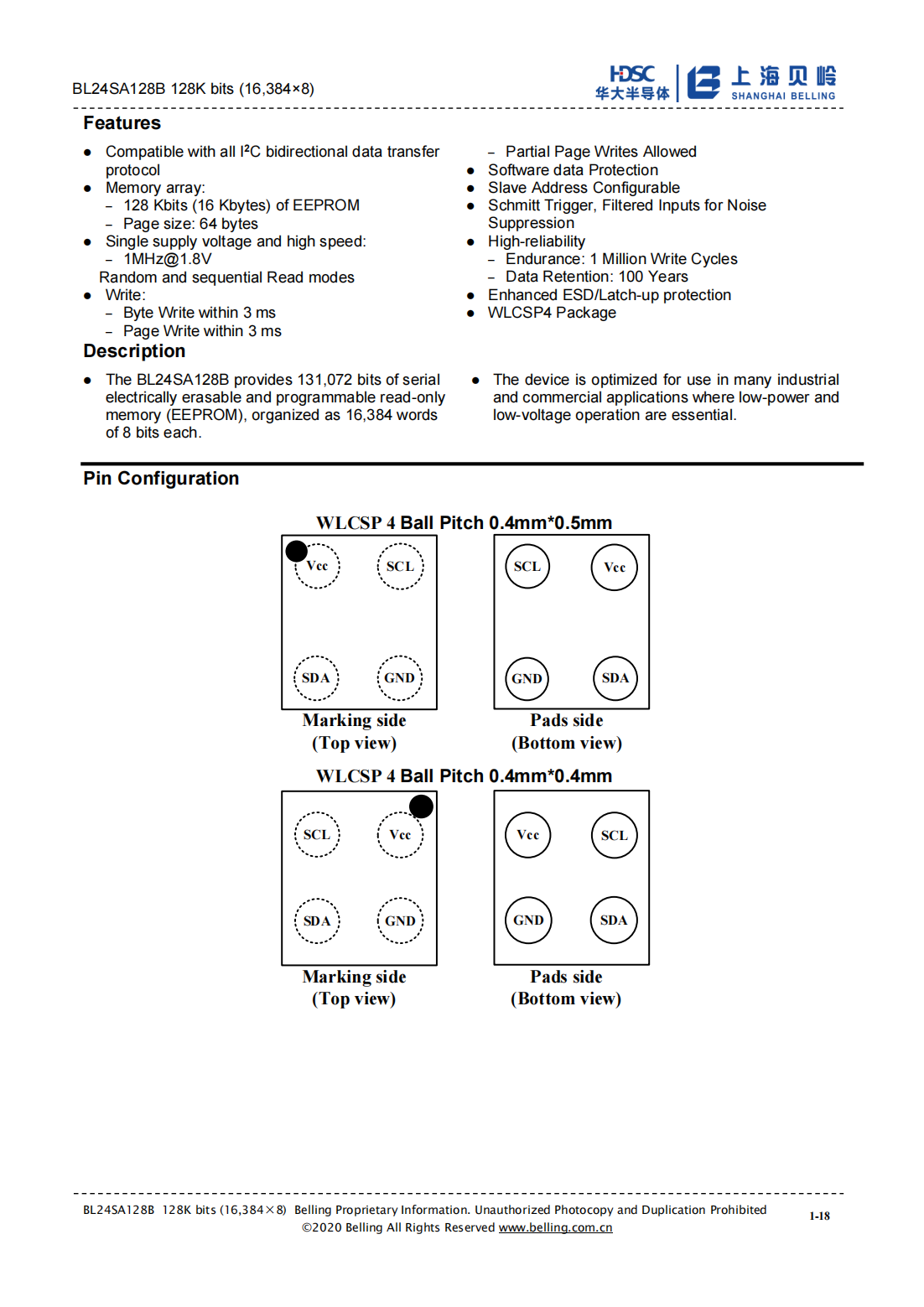

Features

⚫Compatible with all I2C bidirectional data transfer protocol

⚫Memory array:

–128 Kbits(16 Kbytes)of EEPROM

–Page size:64 bytes

⚫Single supply voltage and high speed:

–1MHz 1.8V Random and sequential Read modes

⚫Write:

–Byte Write within 3 ms

–Page Write within 3 ms

–Partial Page Writes Allowed

⚫Software data Protection

⚫Slave Address Configurable

⚫Schmitt Trigger,Filtered Inputs for Noise Suppression

⚫High-reliability

–Endurance:1 Million Write Cycles

–Data Retention:100 Years

⚫Enhanced ESD/Latch-up protection

⚫WLCSP4 Package

Description

⚫The BL24SA128B provides 131,072 bits of serial electrically erasable and programmable read-only memory(EEPROM),organized as 16,384 words of 8 bits each.

⚫The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
