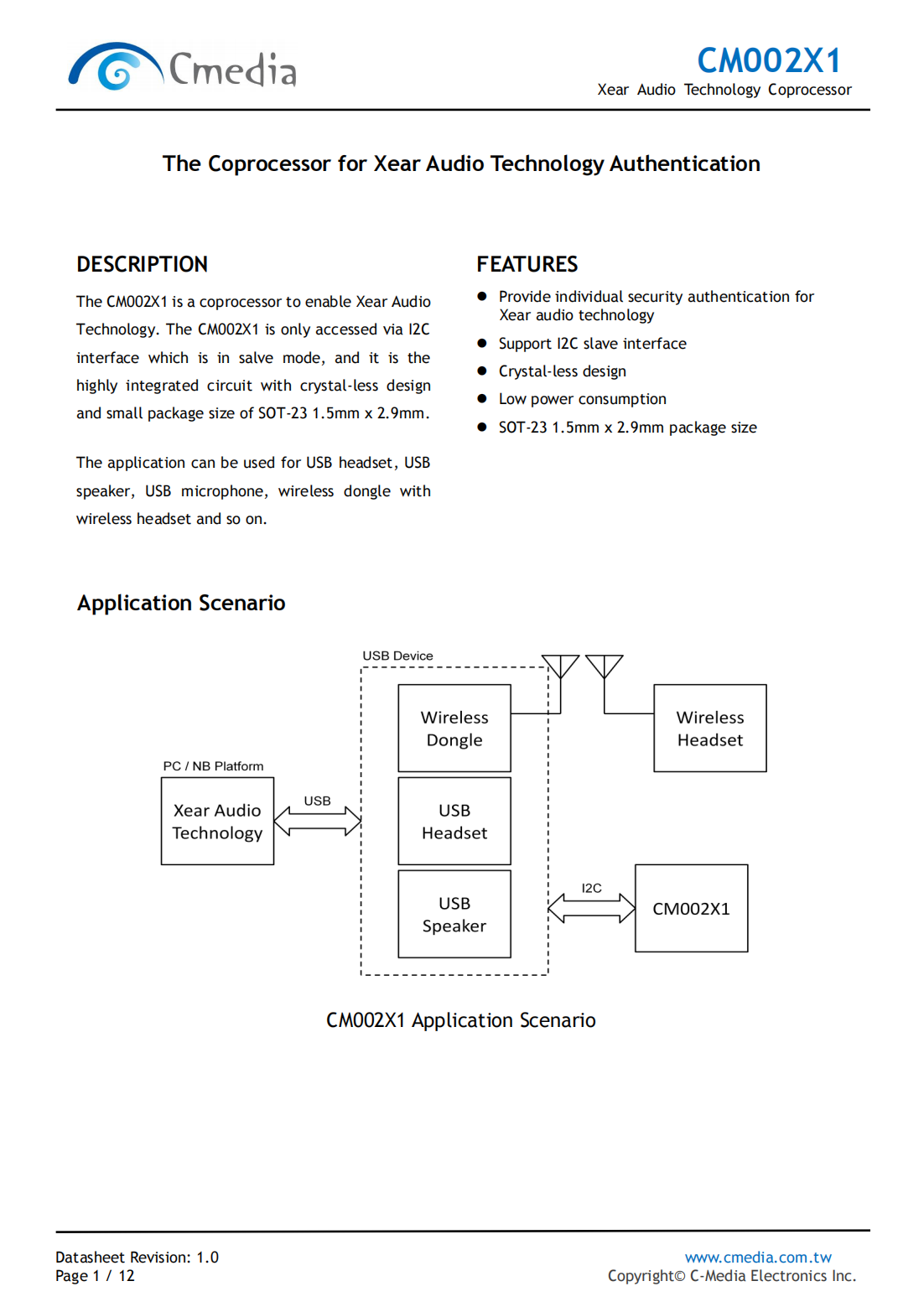

DESCRIPTION

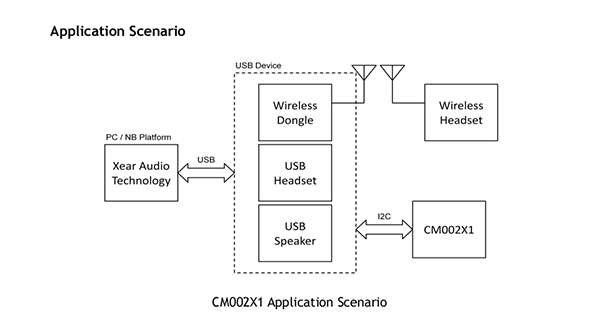

The CM002X1 is a coprocessor to enable Xear Audio Technology.The CM002X1 is only accessed via I2C interface which is in salve mode,and it is the highly integrated circuit with crystal-less design and small package size of SOT-23 1.5mm x 2.9mm.The application can be used for USB headset,USB speaker,USB microphone,wireless dongle with wireless headset and so on.

FEATURES

Provide individual security authentication for Xear audio technology

Support I2C slave interface

Crystal-less design

Low power consumption

SOT-23 1.5mm x 2.9mm package size
