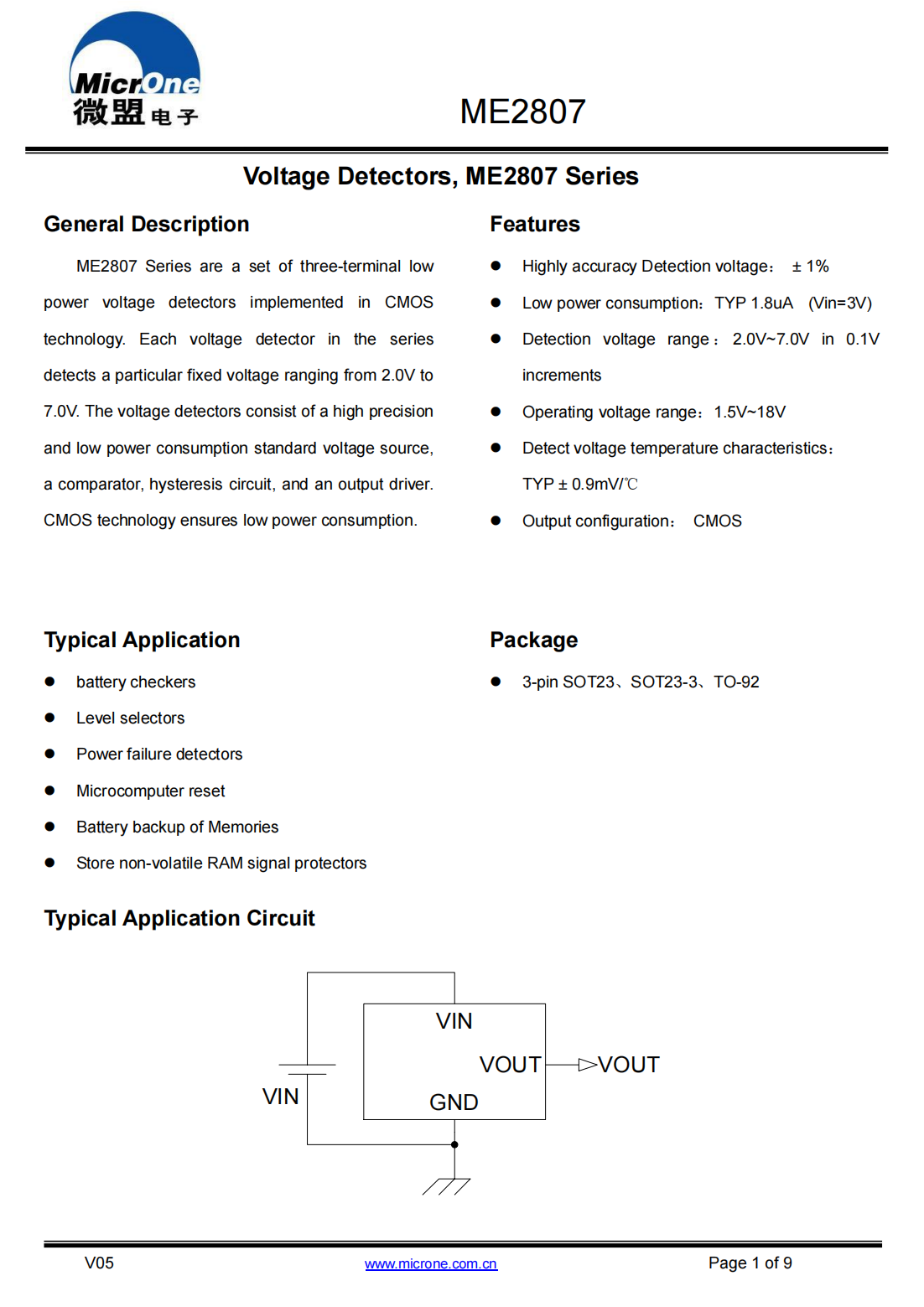

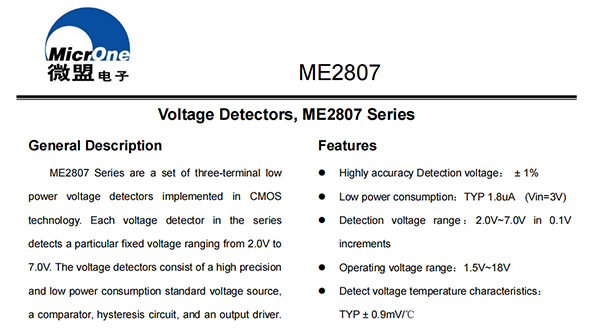

General Description

ME2807 Series are a set of three-terminal low power voltage detectors implemented in CMOS technology.Each voltage detector in the series detects a particular fixed voltage ranging from 2.0V to 7.0V.The voltage detectors consist of a high precision and low power consumption standard voltage source,a comparator,hysteresis circuit,and an output driver.CMOS technology ensures low power consumption.

Features

Highly accuracy Detection voltage：±1%

Low power consumption：TYP 1.8uA(Vin=3V)

Detection voltage range：2.0V~7.0V in 0.1V increments

Operating voltage range：1.5V~18V

Detect voltage temperature characteristics：TYP±0.9mV/℃

Output configuration：CMOS
