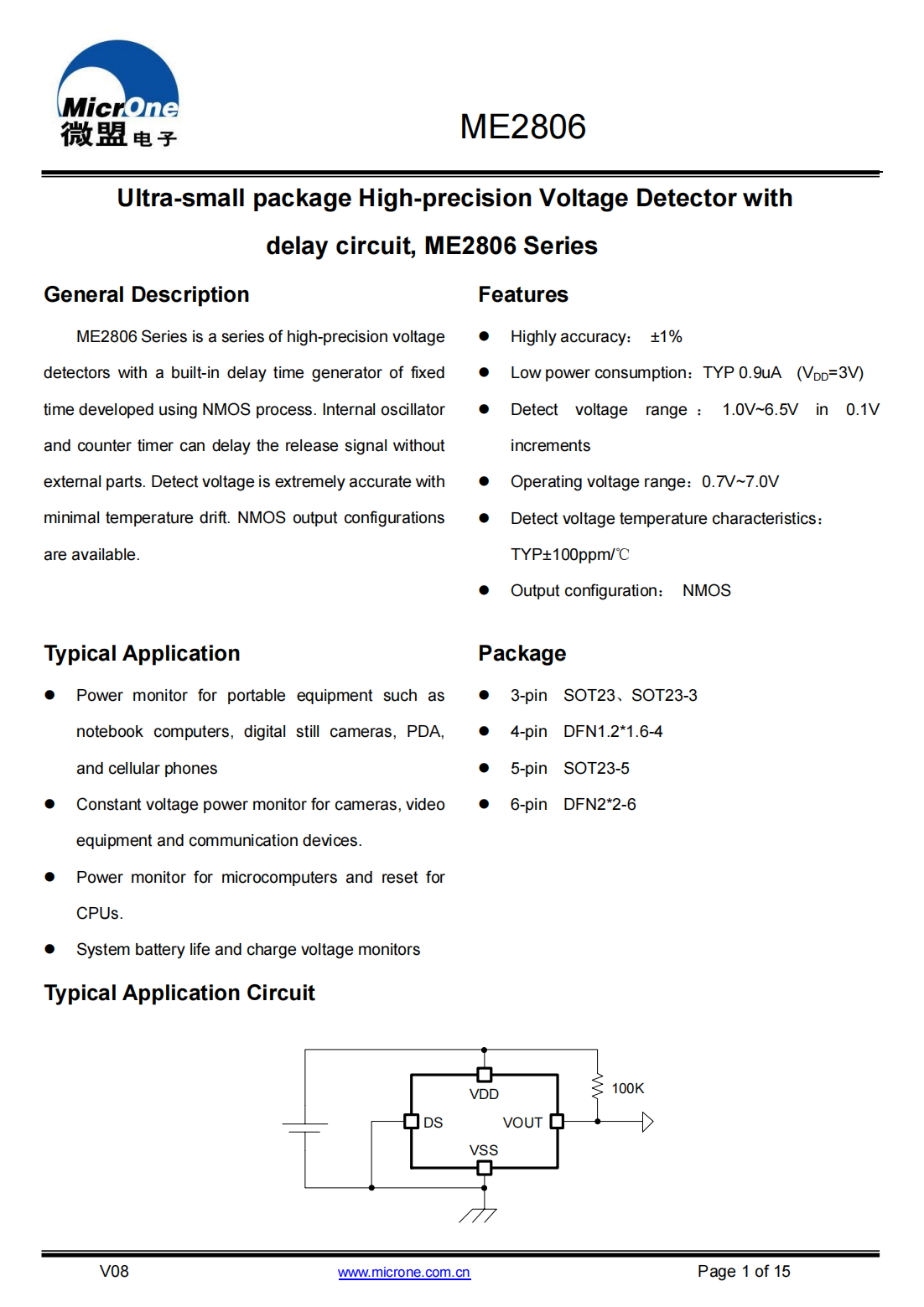

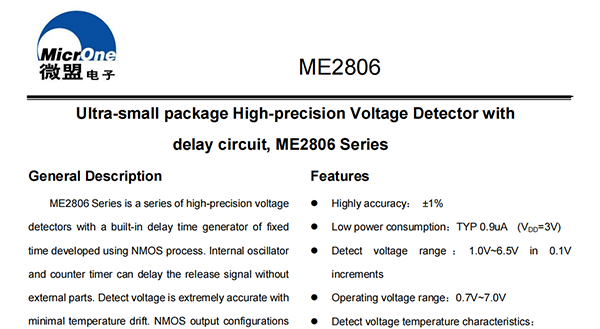

General Description

ME2806 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using NMOS process.Internal oscillator and counter timer can delay the release signal without external parts.Detect voltage is extremely accurate with minimal temperature drift.NMOS output configurations are available.

Features

Highly accuracy：±1%

Low power consumption：TYP 0.9uA(VDD=3V)

Detect voltage range：1.0V~6.5V in 0.1V increments

Operating voltage range：0.7V~7.0V

Detect voltage temperature characteristics：TYP±100ppm/℃

Output configuration：NMOS
