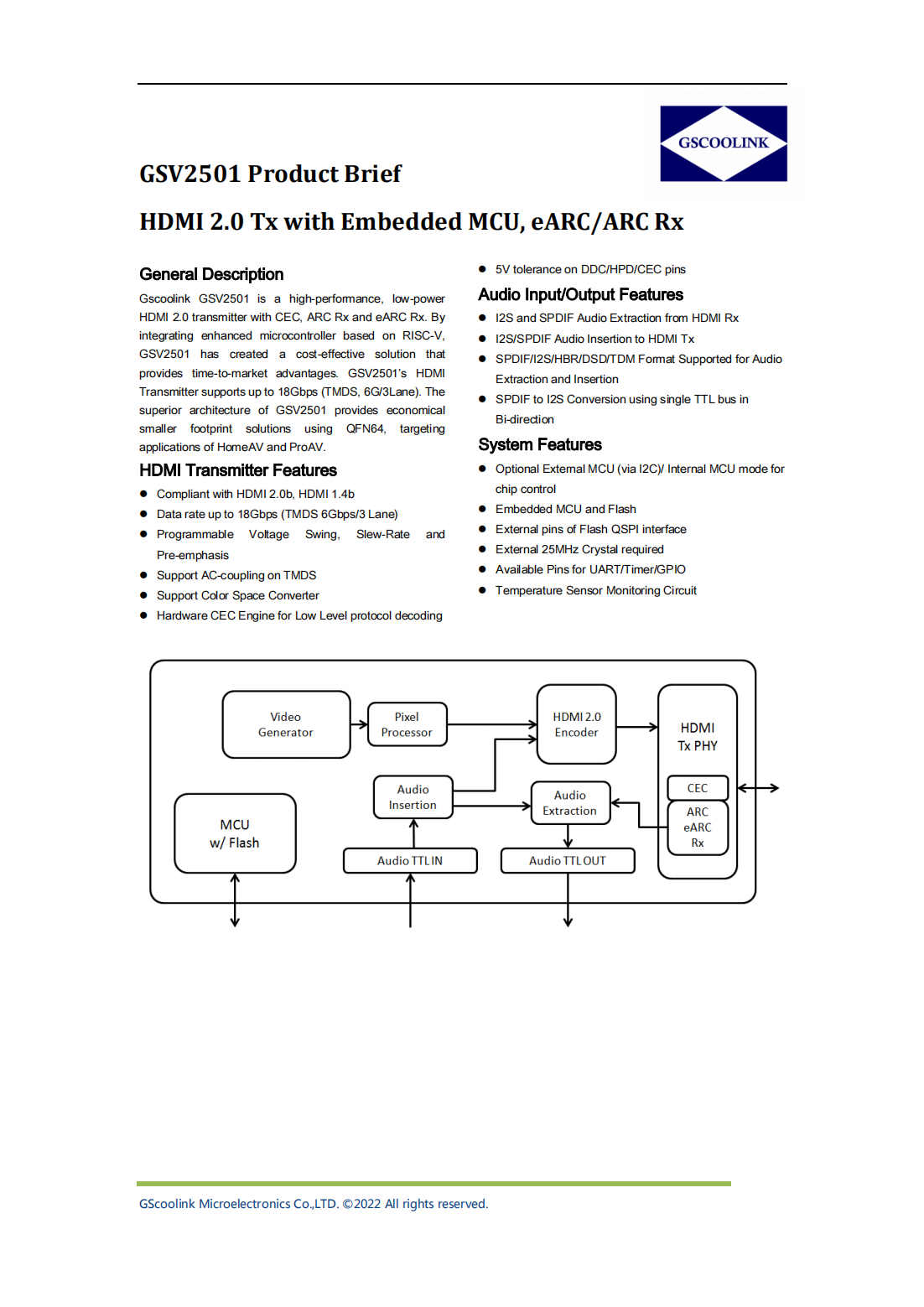

General Description

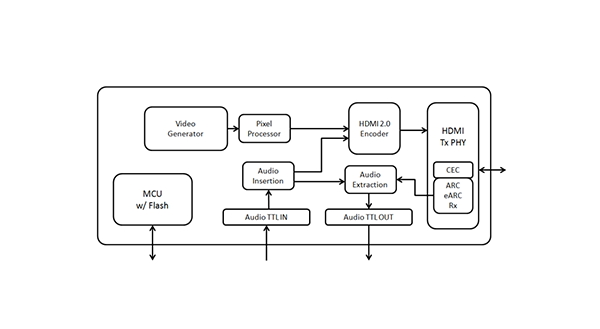

Gscoolink GSV2501 is a high-performance,low-power HDMI 2.0 transmitter with CEC,ARC Rx and eARC Rx.By integrating enhanced microcontroller based on RISC-V,GSV2501 has created a cost-effective solution that provides time-to-market advantages.GSV2501’s HDMI Transmitter supports up to 18Gbps(TMDS,6G/3Lane).The superior architecture of GSV2501 provides economical smaller footprint solutions using QFN64,targeting applications of HomeAV and ProAV.

HDMI Transmitter Features

Compliant with HDMI 2.0b,HDMI 1.4b

Data rate up to 18Gbps(TMDS 6Gbps/3 Lane)

Programmable Voltage Swing,Slew-Rate andPre-emphasis

Support AC-coupling on TMDS

Support Color Space Converter

Hardware CEC Engine for Low Level protocol decoding

5V tolerance on DDC/HPD/CEC pins

Audio Input/Output Features

I2S and SPDIF Audio Extraction from HDMI Rx

I2S/SPDIF Audio Insertion to HDMI Tx

SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

SPDIF to I2S Conversion using single TTL bus in Bi-direction

System Features

Optional External MCU(via I2C)/Internal MCU mode for chip control

Embedded MCU and Flash

External pins of Flash QSPI interface

External 25MHz Crystal required

Available Pins for UART/Timer/GPIO

Temperature Sensor Monitoring Circuit
