GSV6127E替代LT7911_车规级HDMI/TypeC/DP转MIPI芯片

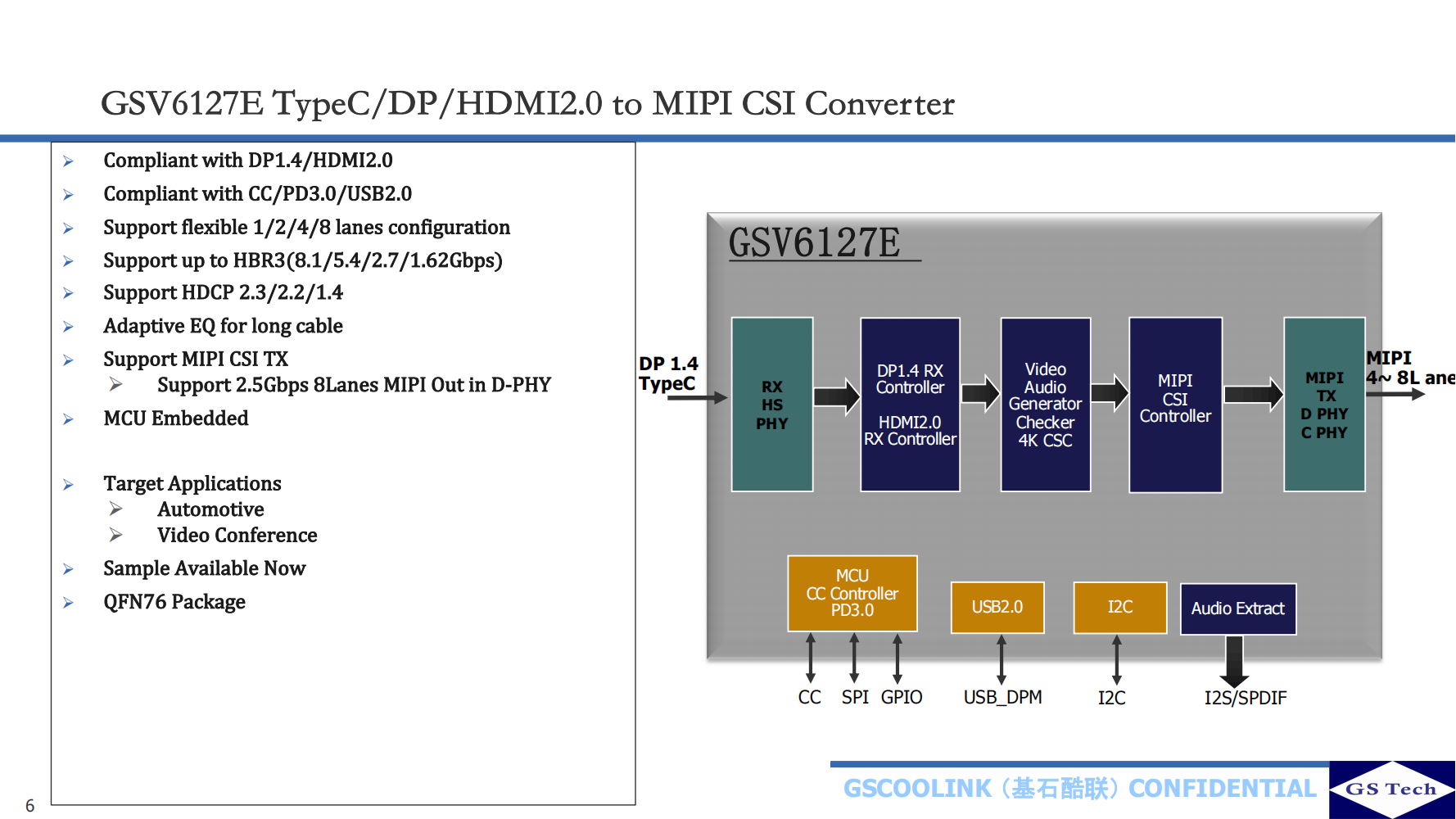

GSV6127E，基石酷联Gscoolink，TypeC/DP/HDMI2.0转MIPI CSI转换器芯片

Compliant with DP1.4/HDMI2.0
Compliant with CC/PD3.0/USB2.0
Support flexible 1/2/4/8 lanes configuration

技术支持 DEMO申请联系我们

详细内容

Compliant with DP1.4/HDMI2.0

Compliant with CC/PD3.0/USB2.0

Support flexible 1/2/4/8 lanes configuration Support up to HBR3(8.1/5.4/2.7/1.62Gbps)

Support HDCP 2.3/2.2/1.4

Adaptive EQ for long cable

Support MIPI CSI TX

Support 2.5Gbps 8Lanes MIPI Out in D-PHY

MCU Embedded

Target Applications

Automotive

Video Conference

Sample Available Now QFN76 Package
