GSV2001_HDMI2.0_1to2 Repeater-昂纬科技

GSV2001_HDMI2.0_1to2 Repeater-昂纬科技

支持HDMI2.0\HDMI1.4
支持HDCP2.2\2.3、HDCP1.4
数据速率最高可达18Gbps
支持多路HDMI输入，1路HDMI输出
支持2.1立体声，杜比5.1、7.1声道

HDMI芯片选型方案手册联系我们

详细内容

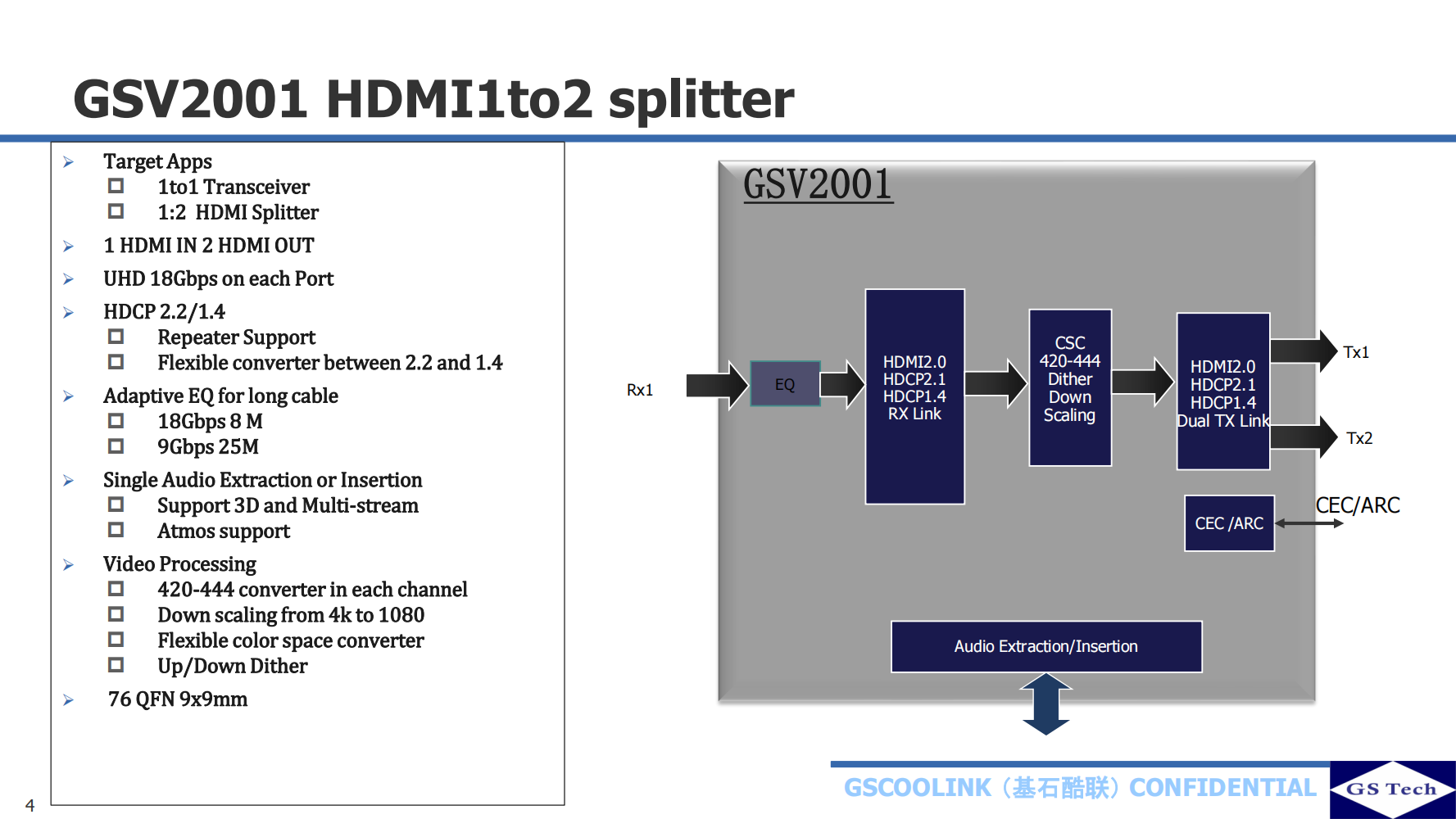

➢1 HDMI IN 2 HDMI OUT

➢UHD 18 Gbps HDMI2.-

➢HDCP 2.2/1.4

Repeater Support

Flexible converter between 2.2 and 1.4

➢Adaptive EQ for long cable

18Gbps 8M

➢Dual Audio Extraction and Insertion

Support 3D and Multi-stream

Atmos support

TDM support in each audio pin up to 8

channels

➢Support CEC/ARC

➢Video Processing

Support Video Generator

420-444 converter in each channel

Down scaling from 4k to 1080

Flexible color space converter

Up/Down Dither

➢76 QFN 9x9 mm

➢2020.6 MP
