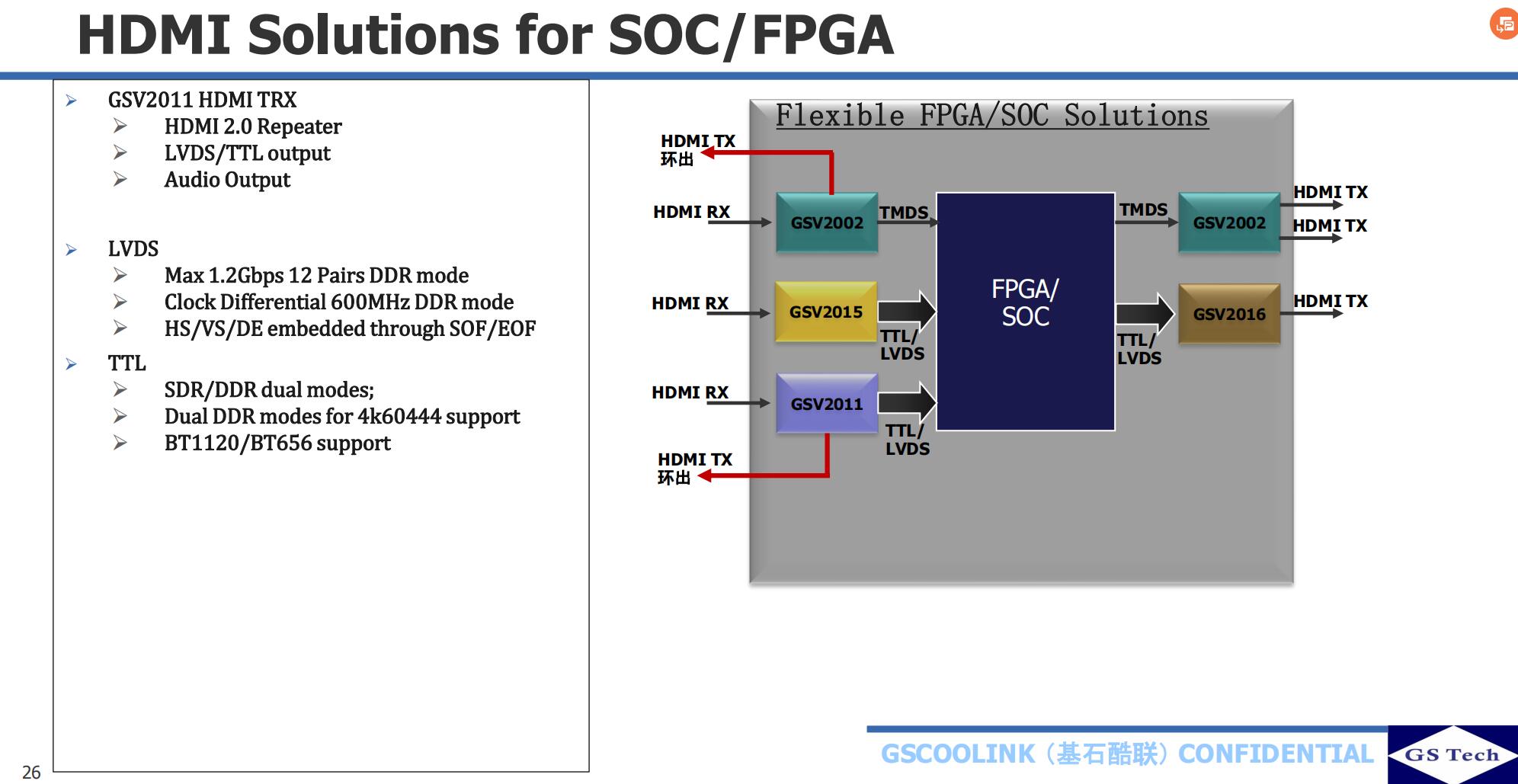

➢GSV2011 HDMI TRX
➢HDMI 2.0 Repeater
➢LVDS/TTL output
➢Audio Output
➢LVDS
➢Max 1.2Gbps 12 Pairs DDR mode
➢Clock Differential 600MHz DDR mode
➢HS/VS/DE embedded through SOF/EOF
➢TTL
➢SDR/DDR dual modes;
➢Dual DDR modes for 4k60444 support
➢BT1120/BT656 support

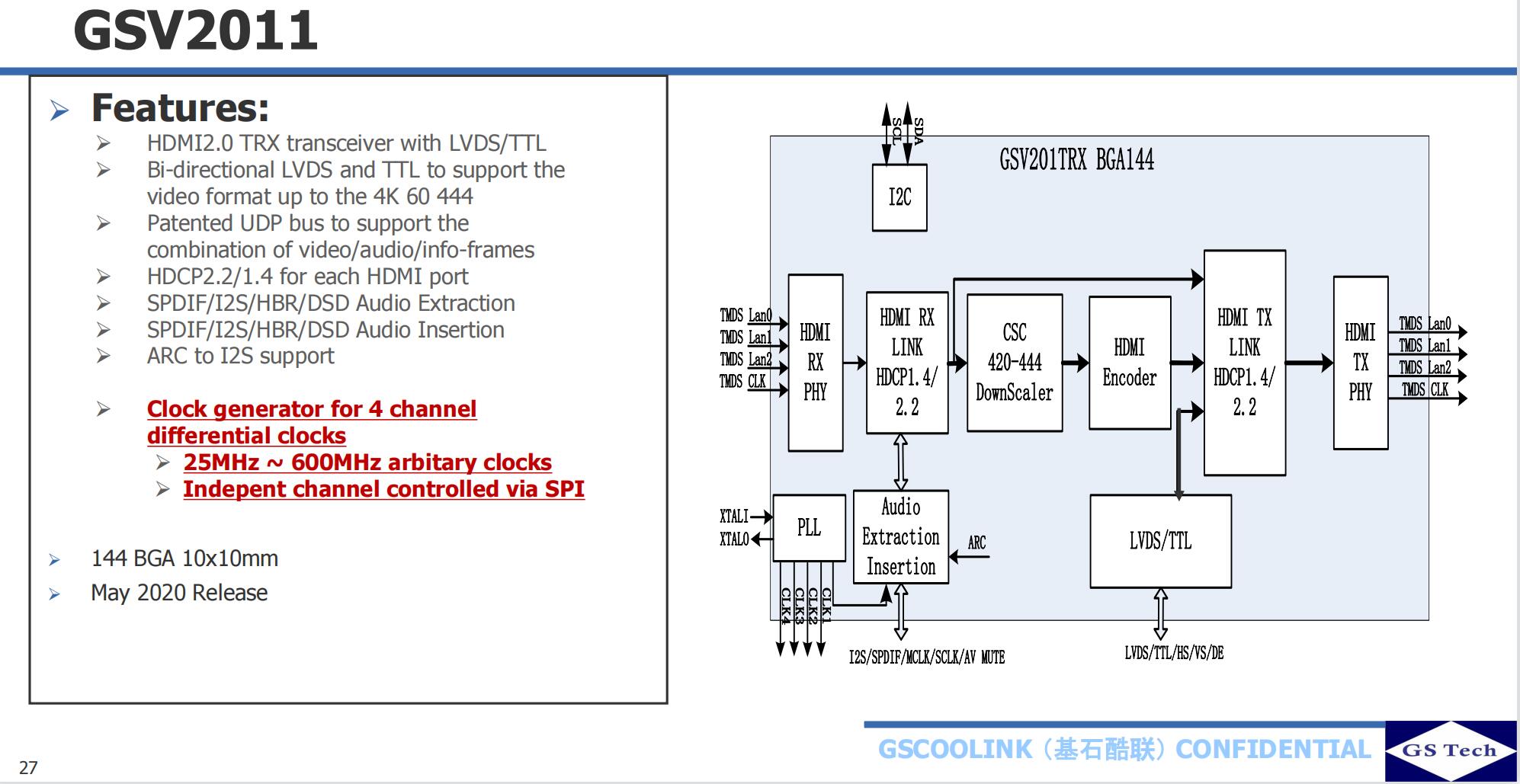

➢ Features:
➢HDMI2.0 TRX transceiver with LVDS/TTL
➢Bi-directional LVDS and TTL to support the
video format up to the 4K 60 444
➢Patented UDP bus to support the
combination of video/audio/info-frames
➢HDCP2.2/1.4 for each HDMI port
➢SPDIF/I2S/HBR/DSD Audio Extraction
➢SPDIF/I2S/HBR/DSD Audio Insertion
➢ARC to I2S support
➢Clock generator for 4 channel
differential clocks
➢ 25MHz ~ 600MHz arbitary clocks
➢ Indepent channel controlled via SPI
➢144 BGA 10x10mm
➢May 2020 Release
