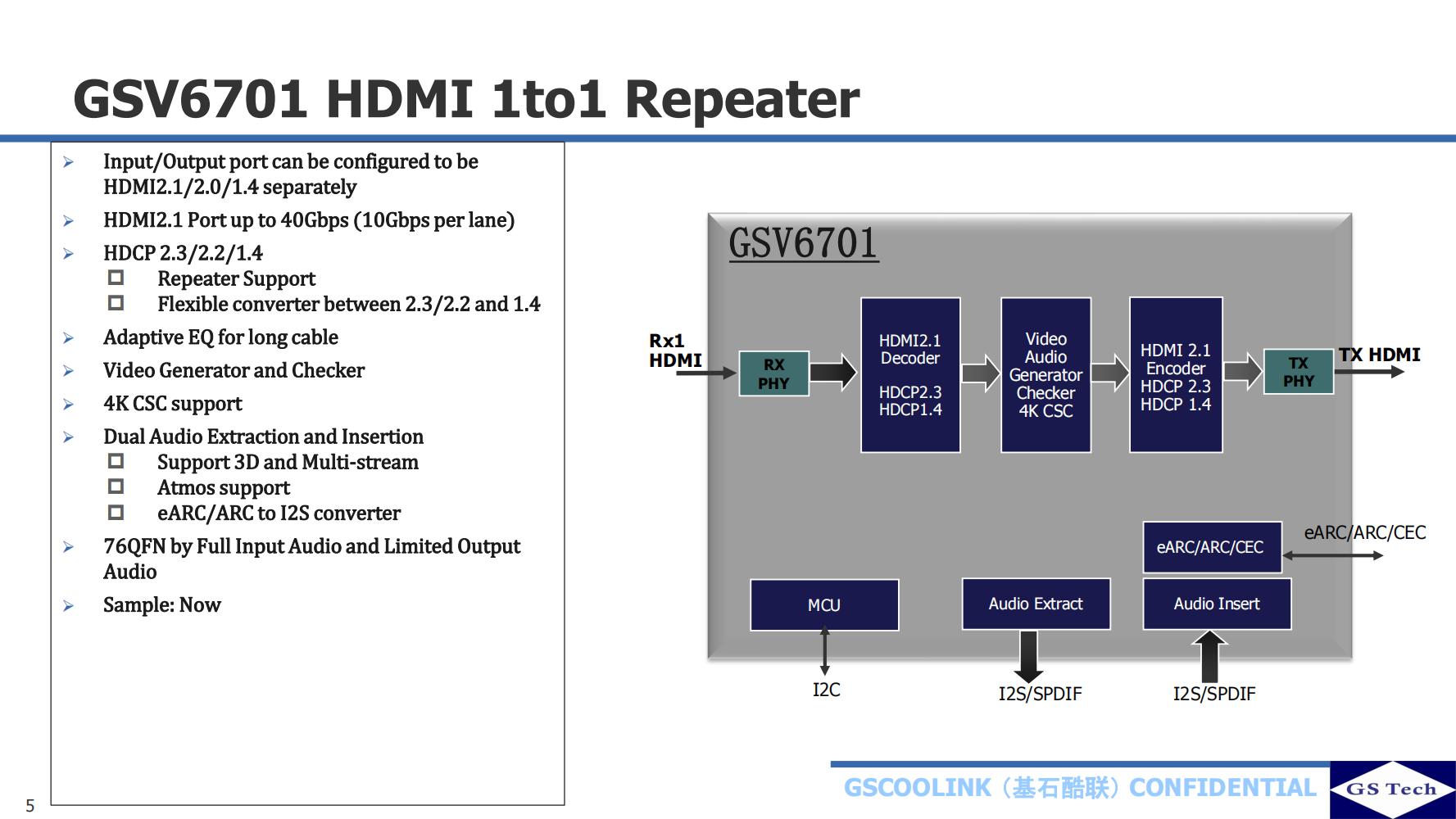

GSV6701_HDMI 1to1 Repeater-昂纬科技

GSV6701_HDMI 1to1 Repeater-昂纬科技

HDMI2.1/2.0/1.4 separately
4K CSC support
HDCP 2.3/2.2/1.4

HDMI芯片选型方案手册联系我们

详细内容

Input/Output port can be configured to be

HDMI2.1/2.0/1.4 separately

➢HDMI2.1 Port up to 40Gbps (10Gbps per lane)

➢HDCP 2.3/2.2/1.4

Repeater Support

Flexible converter between 2.3/2.2 and 1.4

➢Adaptive EQ for long cable

➢Video Generator and Checker

➢4K CSC support

➢Dual Audio Extraction and Insertion

Support 3D and Multi-stream

Atmos support

eARC/ARC to I2S converter

➢76QFN by Full Input Audio and Limited Output

Audio

➢Sample: Now
