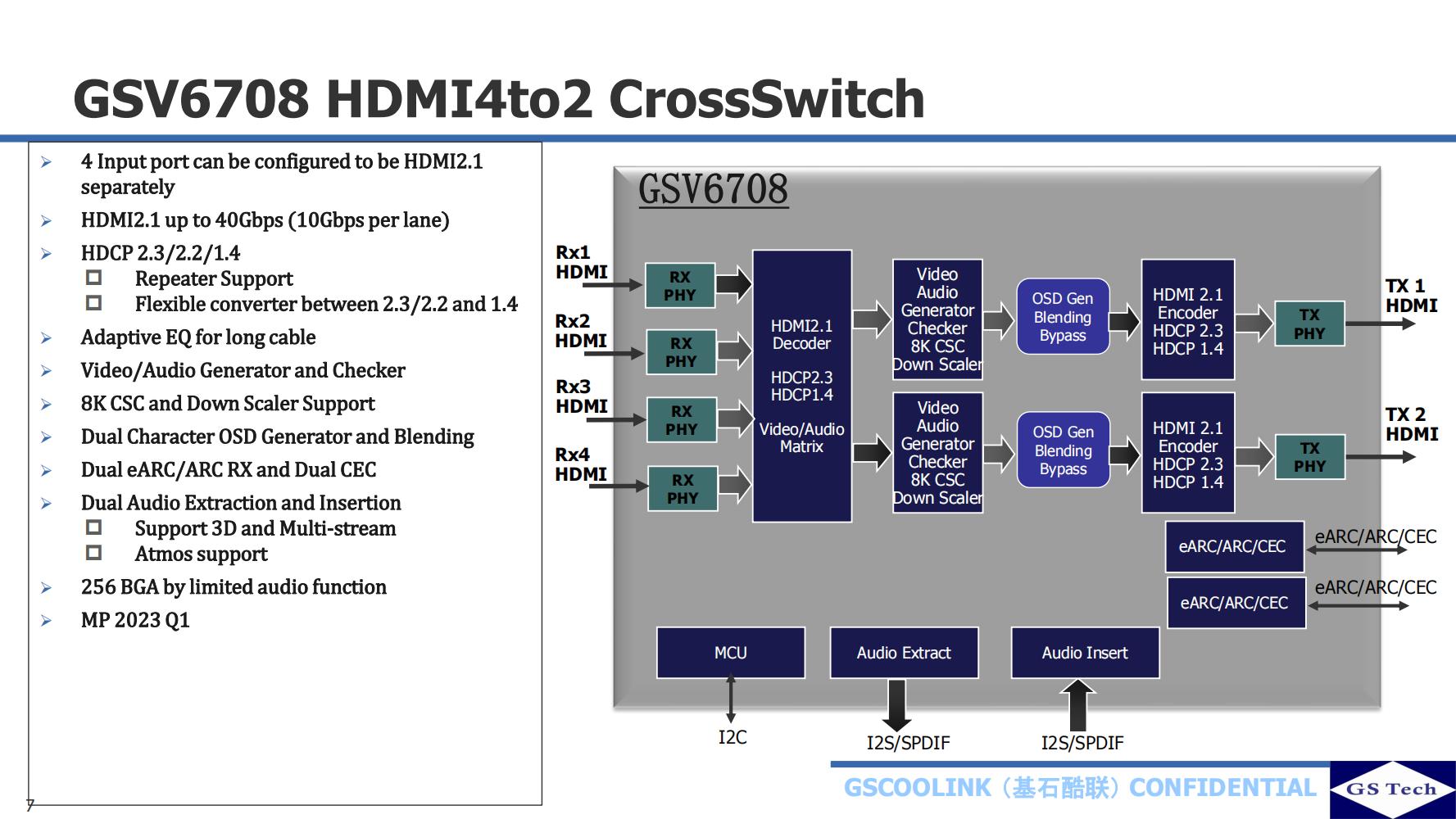

HDMI4to2 CrossSwitch

4 Input port can be configured to be HDMI2.1 separately
HDMI2.1 up to 40Gbps
HDCP 2.3/2.2/1.4
8K CSC and Down Scaler Support

HDMI芯片选型方案手册联系我们

详细内容

➢4 Input port can be configured to be HDMI2.1

separately

➢HDMI2.1 up to 40Gbps (10Gbps per lane)

➢HDCP 2.3/2.2/1.4

Repeater Support

Flexible converter between 2.3/2.2 and 1.4

➢Adaptive EQ for long cable

➢Video/Audio Generator and Checker

➢8K CSC and Down Scaler Support

➢Dual Character OSD Generator and Blending

➢Dual eARC/ARC RX and Dual CEC

➢Dual Audio Extraction and Insertion

Support 3D and Multi-stream

Atmos support

➢256 BGA by limited audio function

➢MP 2023 Q1
